5084614-4
Or copy the link below:
- Mfr.Part #
- 5084614-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN PLUG 100POS SMD GOLD
- Stock
- 967
- In Stock ：
- 967
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Arrays, Edge Type, Mezzanine (Board to Board)
- Row Spacing :
- 2.4 mm
- Termination :
- SMD/SMT
- Insulation Resistance :
- 2MOhm
- Flammability Rating :
- UL94 V-0
- Height Above Board :
- 0.181 4.60mm
- Orientation :
- Vertical
- Packaging :
- Tube
- Contact Style :
- CENTRONIC
- Number of Rows :
- 2
- PCB Contact Pattern :
- RECTANGULAR
- Published :
- 2006
- Withdrawl Force-Min :
- .0973 N
- PCB Mount Retention :
- Without
- Housing Color :
- Natural
- Contact Current Rating :
- 500mA
- Contact Pattern :
- RECTANGULAR
- Min Operating Temperature :
- -40°C
- Number Of PCB Rows :
- 2
- Contact Finish :
- Gold
- Contact Gender :
- Male
- RoHS Status :
- RoHS Compliant
- Insertion Force-Max :
- .8896 N
- Housing Material :
- Polymer
- Filter Feature :
- No
- Contact Shape :
- Square
- JESD-609 Code :
- e3
- Stack Height :
- 8.9916mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Pitch :
- 0.031 0.80mm
- Dielectric Withstanding Voltage :
- 500VAC V
- Reference Standard :
- UL
- Reliability :
- COMMERCIAL
- Feature :
- Board Guide
- IEC Conformance :
- No
- Number of Conductors :
- ONE
- Mount :
- Surface Mount
- Total Number of Contacts :
- 100
- Max Voltage Rating (AC) :
- 100V
- Preloaded :
- yes
- ELV :
- Compliant
- MIL Conformance :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Plating Thickness :
- 30μin
- Height :
- 5mm
- Operating Supply Voltage :
- 100V
- Factory Lead Time :
- 14 Weeks
- Mating Alignment :
- With
- Contact Material :
- Brass
- Lead Free :
- Lead Free
- Number of Positions :
- 100
- Polarization Key :
- POLARIZED HOUSING
- Contact Resistance :
- 30mOhm
- Contact Finish Thickness :
- 30.0μin 0.76μm
- DIN Conformance :
- No
- Option :
- GENERAL PURPOSE
- Connector Type :
- Plug, Center Strip Contacts
- Circuit Application :
- Signal
- Mixed Contacts :
- No
- Max Operating Temperature :
- 125°C
- Sealable :
- No
- Depth :
- 6mm
- Rated Current (Signal) :
- 0.5A
- Contact Finish Thickness - Mating :
- 760 nm
- Pbfree Code :
- yes
- Series :
- Free Height (FH)
- Body Length or Diameter :
- 1.803 inch
- Mounting Type :
- Surface Mount
- Datasheets
- 5084614-4

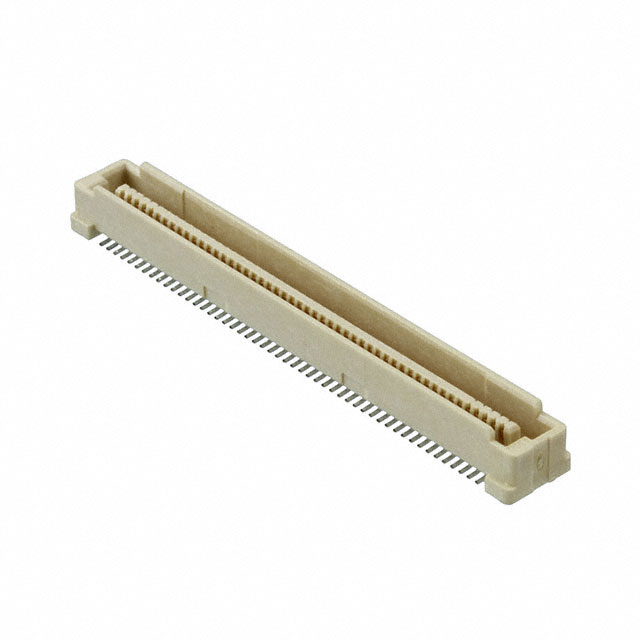

Plug, Center Strip Contacts Tube 2 Rows 0.031 0.80mm Surface Mount 100 Positions Free Height (FH) Gold SMD/SMT Brass
5084614-4 Overview
The packaging contains Plug, Center Strip Contacts.This product is packaged in a case marked Tube.There is a Surface Mount mounting type for the device.Product number Free Height (FH) belongs to the Free Height (FH) Series.Operating the device, it is possible to maintain Board Guide.This part must be mounted in a Surface Mount socket.Whenever the temperature is below 125°C, it's best.There is a minimum temperature requirement of [0°C] for this device.This device can be used with a 100V supply since it is suitable for operation with this supply.
5084614-4 Features
Free Height (FH) series
Package / Case: Tube
Mounting Type:Surface Mount
Max Operating temperature at -40°C
5084614-4 Applications
There are a lot of TE Connectivity AMP Connectors
5084614-4 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
