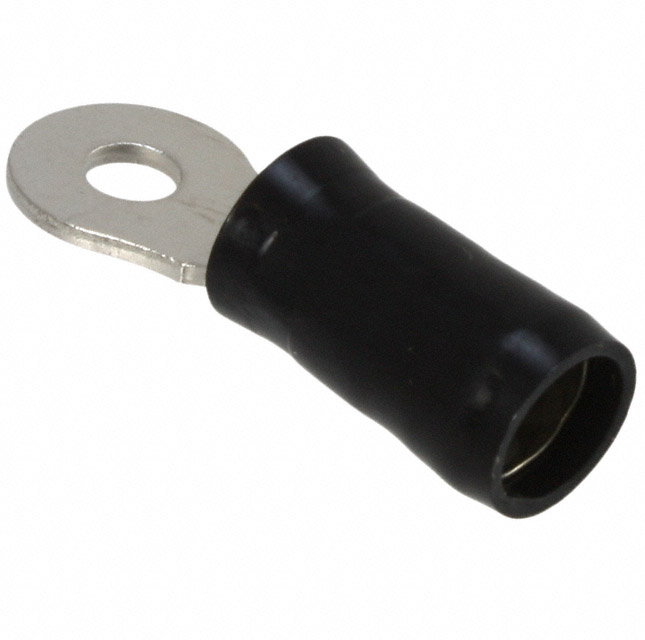

50845
Or copy the link below:
- Mfr.Part #
- 50845
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RING CIRC 10-12AWG #6 CRIMP
- Stock
- 1,675
- In Stock ：
- 1,675
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Ring Connectors
- Stud Size :
- M3.5
- Terminal Gender :
- FEMALE
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Width - Outer Edges :
- 0.375 9.53mm
- HTS Code :
- 8536.90.40.00
- Feature :
- Serrated Termination
- Packaging :
- Bulk
- Pbfree Code :
- yes
- Mount :
- Free Hanging
- Terminal and Terminal Block Type :
- RING TERMINAL
- Mounting Type :
- Free Hanging (In-Line)
- Contact Material :
- Copper
- Terminal Type :
- Circular
- Wire Gauge (Max) :
- 10 AWG
- Length :
- 27.5082mm
- Insulation Diameter :
- 0.102 ~ 0.214 (2.59mm ~ 5.44mm)
- Published :
- 2009
- Contact Plating :
- Nickel
- Color :
- Black
- Insulated Wire Support :
- yes
- RoHS Status :
- RoHS Compliant
- Number of Holes :
- 1
- Thickness :
- 0.039 0.99mm
- Wire Gauge :
- 10-12 AWG
- Wire Gauge (Min) :
- 12 AWG
- Depth :
- 9.52mm
- Heavy Duty :
- No
- Stud/Tab Size :
- 6 Stud
- ELV :
- Compliant
- Lead Free :
- Not Applicable
- ECCN Code :
- EAR99
- Factory Lead Time :
- 4 Weeks
- Length - Overall :
- 1.083 27.51mm
- Stud Diameter :
- 3.68 mm
- Material - Insulation :
- Polytetrafluoroethylene (PTFE)
- Series :
- PIDG, Strato-Therm
- Termination :
- Crimp
- Tongue Thickness :
- 1.0668mm
- Voltage - Rated AC :
- 300V
- Insulation :
- Insulated
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Datasheets
- 50845
50845 datasheet pdf and Terminals - Ring Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
