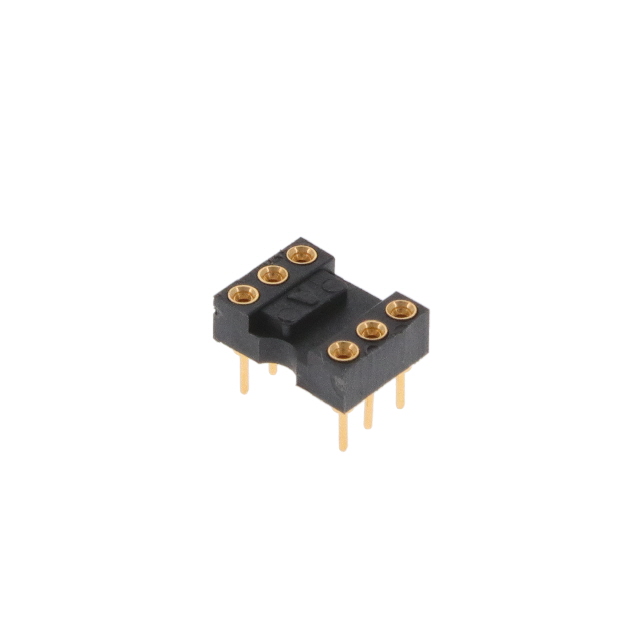

506-AG10D
Or copy the link below:
- Mfr.Part #
- 506-AG10D
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN IC DIP SOCKET 6POS GOLD
- Stock
- 55
- In Stock ：
- 55
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- IC Sockets
- Termination Post Length :
- 0.125 3.18mm
- Contact Resistance :
- 10MOhm
- Current Rating :
- 3A
- Contact Current Rating :
- 3A
- Connector Type :
- Pin
- Mounting Type :
- Through Hole
- Body Depth :
- 0.18 inch
- Operating Temperature :
- -55°C~125°C
- Number of Contacts :
- 6
- Series :
- 500
- Contact Style :
- Screw
- Contact Material - Post :
- Brass
- ELV :
- Compliant
- Orientation :
- Straight
- ECCN Code :
- EAR99
- Circuit Application :
- Signal
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mating Contact Pitch :
- 0.1 inch
- Contact Finish Thickness - Post :
- 25.0μin 0.63μm
- Pitch - Mating :
- 0.100 2.54mm
- Body Breadth :
- 0.4 inch
- Row Spacing :
- 7.62 mm
- Lead Pitch :
- 2.54mm
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Termination :
- Solder
- Factory Lead Time :
- 8 Weeks
- Mount :
- Through Hole
- Feature :
- Closed Frame
- Additional Feature :
- STANDARD: UL 94V-0
- Published :
- 2015
- REACH SVHC :
- Unknown
- Lead Length :
- 3.175mm
- RoHS Status :
- RoHS Compliant
- Plating Thickness :
- 635 nm
- Voltage - Rated :
- 1kV
- Contact Material - Mating :
- BERYLLIUM COPPER
- Type :
- DIP, 0.3 (7.62mm) Row Spacing
- Pitch - Post :
- 0.100 2.54mm
- Pbfree Code :
- yes
- Gender :
- FEMALE
- Contact Material :
- Copper
- Contact Finish Thickness - Mating :
- 25.0μin 0.63μm
- Number of Rows :
- 2
- Flammability Rating :
- UL94 V-0
- Packaging :
- Tube
- Housing Material :
- Polyester
- PCB Contact Pattern :
- RECTANGULAR
- Body Length or Diameter :
- 0.3 inch
- Insulation Resistance :
- 5GOhm
- Number of Positions or Pins (Grid) :
- 6 (2 x 3)
- Contact Finish - Mating :
- Gold
- Datasheets
- 506-AG10D
506-AG10D datasheet pdf and Sockets for ICs, Transistors product details from TE Connectivity AMP Connectors stock available at Xinshop
