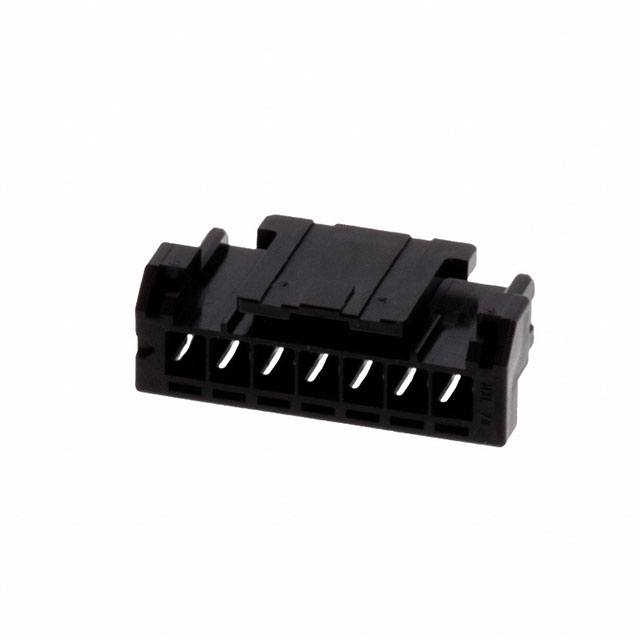

    Images are for reference only.

    Delivery：

    Payment：

    5055700701

    Share

    Or copy the link below:

    Mfr.Part #
    5055700701
    Manufacturer
    Molex
    Package / Case
    Datasheet
    Download
    Description
    CONN RCPT HSG 7POS 2.00MM
    Stock
    43,600
    In Stock ：
    43,600

    Request A Quote(RFQ)

    * Fullname:
    * Company:
    * E-Mail:
      Phone:
      Comment:
    * Quantity:
    Manufacturer :
    Molex
    Product Category :
    Rectangular Connector Housings
    Fastening Type :
    Latch Holder
    Contact Finish - Mating :
    NOT SPECIFIED
    Note :
    Contacts Not Included
    ECCN Code :
    EAR99
    Moisture Sensitivity Level (MSL) :
    1 (Unlimited)
    Number of Rows :
    1
    Number of Positions :
    7
    Contact Material :
    NOT SPECIFIED
    Contact Termination :
    Crimp
    Series :
    Micro-Lock PLUS 505570
    Connector Type :
    Receptacle
    Color :
    Black
    Factory Lead Time :
    11 Weeks
    RoHS Status :
    ROHS3 Compliant
    Contact Type :
    Non-Gendered
    Published :
    2017
    Packaging :
    Bulk
    Pitch :
    0.079 2.00mm
    Mounting Type :
    Free Hanging (In-Line)
    Datasheets
    5055700701
    Introducing Rectangular Connector Housings Molex 5055700701 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type：Free Hanging (In-Line), 5055700701 pinout, 5055700701 datasheet PDF, 5055700701 amp .Beyond Rectangular Connector Housings Molex 5055700701 ,we also offer GHR-05V-S, 1-1123722-3, 0022013037, Our vast inventory has you covered. Contact us now for immediate solutions.

    Molex 5055700701


    1 Rows Receptacle Bulk Black 7 Positions Free Hanging (In-Line) Non-Gendered Crimp Micro-Lock PLUS 505570

    5055700701 Overview


    Packaging is in the form of Receptacle.This device has a Free Hanging (In-Line) mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the Micro-Lock PLUS 505570 Series.

    5055700701 Features


    Micro-Lock PLUS 505570 series


    5055700701 Applications


    There are a lot of Molex
    5055700701 Rectangular Connectors applications.


    • Instrumentation
    • Automotive Electronics
    • Telecommunications
    • Data Technology
    • Blowers
    • Control panels
    • Electrical substations
    • Energy efficient lighting (LED)
    • LED municipal outdoor and street lighting
    • All Electrical Machinery
