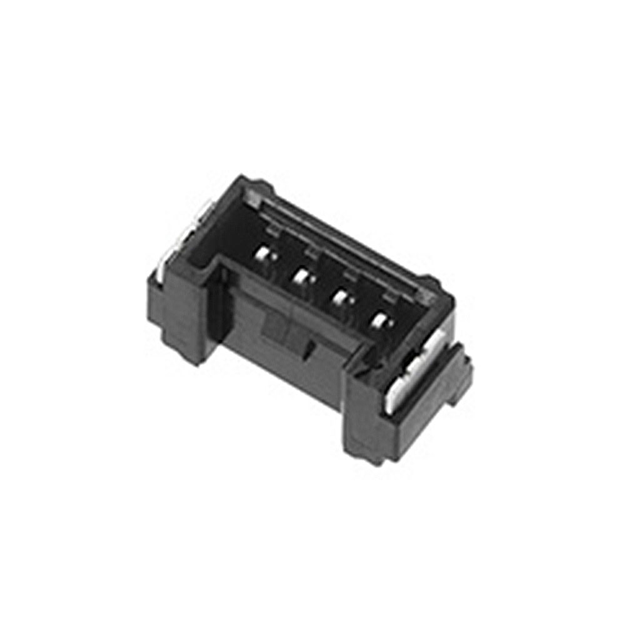

5055680681

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Insulation Color :

Black

Number Of PCB Rows :

1

Packaging :

Tape and Reel (TR)

Body Length or Diameter :

0.423 inch

Shrouding :

Shrouded - 4 Wall

Operating Temperature :

-40°C~105°C

ECCN Code :

EAR99

Insulation Height :

0.165 4.20mm

Number of Positions :

6

Applications :

Automotive, General Purpose, Industrial

Feature :

Pick and Place, Solder Retention

Stack Height (Mating) :

7.4mm

Voltage - Rated :

50VAC/DC

Number of Rows :

1

Factory Lead Time :

16 Weeks

Contact Finish Thickness - Mating :

3.90μin 0.099μm

Total Number of Contacts :

6

Fastening Type :

Push-Pull

Pitch - Mating :

0.049 1.25mm

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Connector Type :

Header

Mounting Type :

Surface Mount

Contact Material :

Brass

Material Flammability Rating :

UL94 V-0

Number of Positions Loaded :

All

Insulation Material :

Polyamide (PA), Nylon, Glass Filled

Current Rating (Amps) :

Varies by WireGAuge

RoHS Status :

ROHS3 Compliant

Shell Material :

Glass Filled Polyamide

Contact Finish - Mating :

Gold

Contact Finish Thickness - Post :

3.90μin 0.099μm

Series :

Micro-Lock PLUS 505568

Mixed Contacts :

No

Mating Contact Pitch :

0.049 inch

PCB Contact Pattern :

RECTANGULAR

UL Flammability Code :

94V-0

Contact Shape :

Square

Empty Shell :

No

Contact Type :

Male Pin

Filter Feature :

No

Reference Standard :

UL

Termination :

Solder

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Style :

Board to Cable/Wire

Number of Conductors :

ONE
