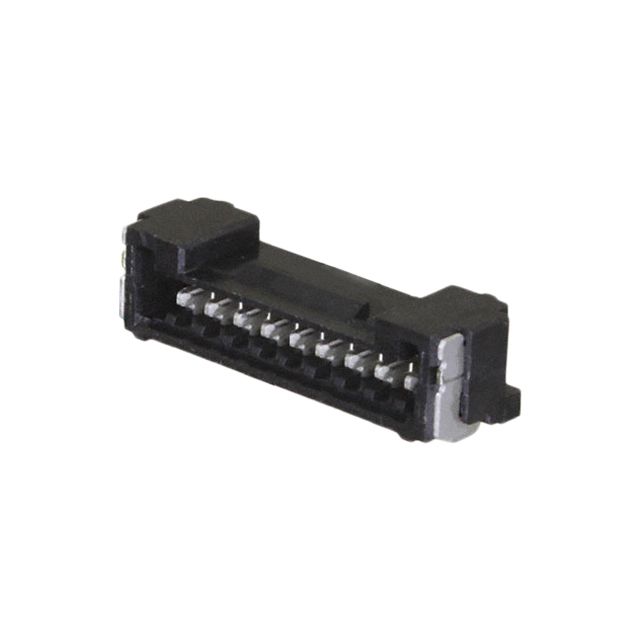

5055670971
Or copy the link below:
- Mfr.Part #
- 5055670971
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD R/A 9POS 1.25MM
- Stock
- 41,009
- In Stock ：
- 41,009
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Applications :
- Automotive, General Purpose, Industrial
- RoHS Status :
- ROHS3 Compliant
- Contact Finish Thickness - Post :
- 39.4μin 1.00μm
- Connector Type :
- Header
- Insulation Height :
- 0.154 3.90mm
- Series :
- Micro-Lock PLUS 505567
- Operating Temperature :
- -40°C~105°C
- Voltage - Rated :
- 50VAC/DC
- Style :
- Board to Cable/Wire
- Contact Finish Thickness - Mating :
- 39.4μin 1.00μm
- Pitch - Mating :
- 0.049 1.25mm
- Number of Rows :
- 1
- Insulation Material :
- Polyamide (PA), Nylon, Glass Filled
- Contact Material :
- Brass
- Material Flammability Rating :
- UL94 V-0
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Fastening Type :
- Locking Ramp
- Contact Type :
- Male Pin
- Contact Shape :
- Square
- Number of Positions :
- 9
- Packaging :
- Tape and Reel (TR)
- Number of Positions Loaded :
- All
- Current Rating (Amps) :
- Varies by WireGAuge
- Shrouding :
- Shrouded - 4 Wall
- Termination :
- Solder
- Insulation Color :
- Black
- Mounting Type :
- Surface Mount, Right Angle
- Feature :
- Solder Retention
- Factory Lead Time :
- 16 Weeks
- Contact Finish - Mating :
- Tin
- Datasheets
- 5055670971
Micro-Lock PLUS 505567 Series 1-Row Header Solder Brass Tape & Reel (TR) Surface Mount, Right Angle Tin Polyamide (PA), Nylon, Glass Filled 9-Position Board to Cable/Wire 0.154 3.90mm Height
5055670971 Overview
The packaging contains Header.There is a Surface Mount, Right Angle mounting type for the device.This product is packaged in a case marked Tape & Reel (TR).Product number Micro-Lock PLUS 505567 belongs to the Micro-Lock PLUS 505567 Series.In addition to Automotive, General Purpose, Industrial, there are other possible applications for the device.In many ways, it is more powerful due to its Solder Retention feature.This device operates at a temperature of -40°C~105°C.
5055670971 Features
Micro-Lock PLUS 505567 series
5055670971 Applications
There are a lot of Molex
5055670971 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
