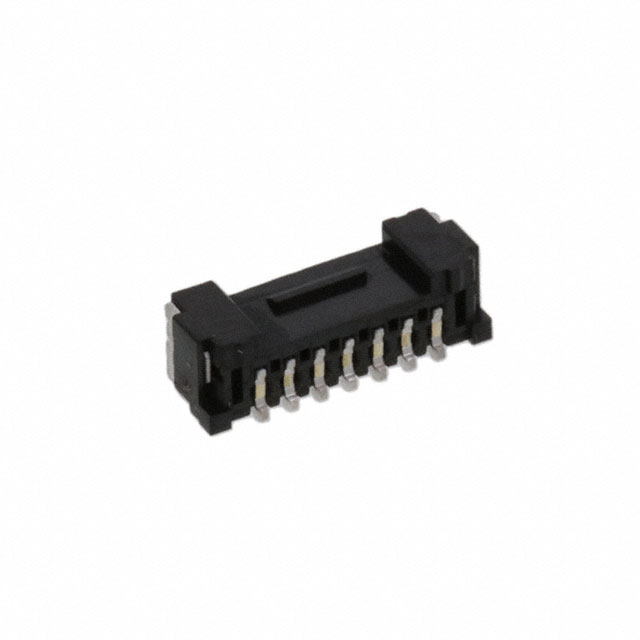

5055670771
Or copy the link below:
- Mfr.Part #
- 5055670771
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD R/A 7POS 1.25MM
- Stock
- 5,717
- In Stock ：
- 5,717
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Published :
- 2016
- Pitch - Mating :
- 0.049 1.25mm
- Style :
- Board to Cable/Wire
- Operating Temperature :
- -40°C~105°C
- Contact Finish Thickness - Post :
- 39.4μin 1.00μm
- Number of Rows :
- 1
- Material Flammability Rating :
- UL94 V-0
- Applications :
- Automotive, General Purpose, Industrial
- Contact Finish Thickness - Mating :
- 39.4μin 1.00μm
- Feature :
- Solder Retention
- RoHS Status :
- ROHS3 Compliant
- ECCN Code :
- EAR99
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Positions Loaded :
- All
- Insulation Material :
- Polyamide (PA), Nylon, Glass Filled
- Insulation Color :
- Black
- Contact Finish - Mating :
- Tin
- Contact Type :
- Male Pin
- Termination :
- Solder
- Current Rating (Amps) :
- Varies by WireGAuge
- Mounting Type :
- Surface Mount, Right Angle
- Connector Type :
- Header
- Voltage - Rated :
- 50VAC/DC
- Packaging :
- Tape and Reel (TR)
- HTS Code :
- 8536.69.40.30
- Fastening Type :
- Locking Ramp
- Number of Positions :
- 7
- Shrouding :
- Shrouded - 4 Wall
- Insulation Height :
- 0.154 3.90mm
- Contact Material :
- Brass
- Series :
- Micro-Lock PLUS 505567
- Contact Shape :
- Square
- Factory Lead Time :
- 14 Weeks
- Datasheets
- 5055670771
5055670771 Documents
Micro-Lock PLUS 505567 Series 1-Row Header Solder Brass Tape & Reel (TR) Surface Mount, Right Angle Tin Polyamide (PA), Nylon, Glass Filled 7-Position Board to Cable/Wire 0.154 3.90mm Height
5055670771 Overview
The product is packaged in Header.This device is mounted in the Surface Mount, Right Angle position.It has been determined that a Tape & Reel (TR) case is necessary to package the product.There is a product in the Micro-Lock PLUS 505567 Series.The device could be used for the following application: Automotive, General Purpose, Industrial.There are a number of advantages to its Solder Retention feature.As a result, the device runs at -40°C~105°C Operating Temperature.
5055670771 Features
Micro-Lock PLUS 505567 series
5055670771 Applications
There are a lot of Molex
5055670771 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
