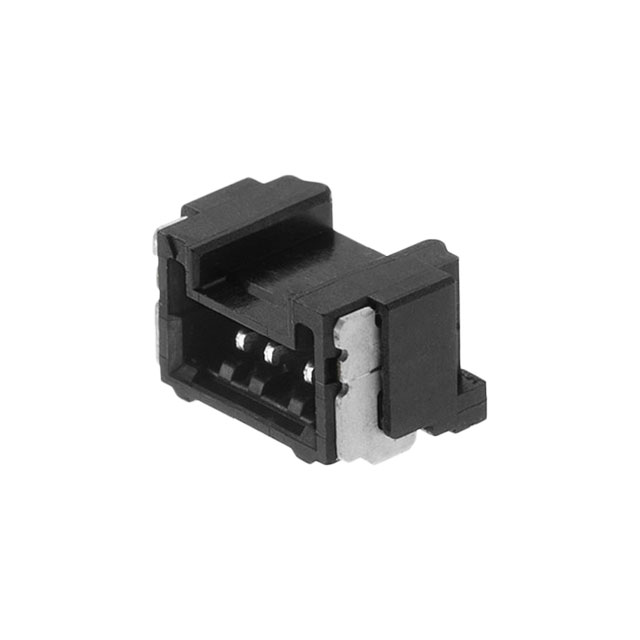

5055670371
Or copy the link below:
- Mfr.Part #
- 5055670371
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD R/A 3POS 1.25MM
- Stock
- 79,200
- In Stock ：
- 79,200
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Mounting Type :
- Surface Mount, Right Angle
- Insulation Height :
- 0.154 3.90mm
- Series :
- Micro-Lock PLUS 505567
- Applications :
- Automotive, General Purpose, Industrial
- Fastening Type :
- Locking Ramp
- Number of Positions Loaded :
- All
- Contact Finish - Mating :
- Tin
- Contact Type :
- Male Pin
- Number of Positions :
- 3
- Style :
- Board to Cable/Wire
- Contact Finish Thickness - Post :
- 39.4μin 1.00μm
- Contact Shape :
- Square
- Pitch - Mating :
- 0.049 1.25mm
- Contact Material :
- Brass
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- ECCN Code :
- EAR99
- Current Rating (Amps) :
- Varies by WireGAuge
- Connector Type :
- Header
- RoHS Status :
- ROHS3 Compliant
- Material Flammability Rating :
- UL94 V-0
- Operating Temperature :
- -40°C~105°C
- Published :
- 2017
- Number of Rows :
- 1
- Termination :
- Solder
- Voltage - Rated :
- 50VAC/DC
- Insulation Material :
- Polyamide (PA), Nylon, Glass Filled
- Factory Lead Time :
- 16 Weeks
- Shrouding :
- Shrouded - 4 Wall
- Contact Finish Thickness - Mating :
- 39.4μin 1.00μm
- Packaging :
- Tape and Reel (TR)
- Feature :
- Solder Retention
- Insulation Color :
- Black
- Datasheets
- 5055670371
5055670371 Documents
Micro-Lock PLUS 505567 Series 1-Row Header Solder Brass Tape & Reel (TR) Surface Mount, Right Angle Tin Polyamide (PA), Nylon, Glass Filled 3-Position Board to Cable/Wire 0.154 3.90mm Height
5055670371 Overview
A Header package is included with it.Its mounting type is Surface Mount, Right Angle.Packaging is performed using a Tape & Reel (TR) case.It is part of the Micro-Lock PLUS 505567 Series of products.It is possible for the device to be used for the application Automotive, General Purpose, Industrial.A number of features make it more powerful because of its Solder Retention feature.There is no operating temperature for the device.
5055670371 Features
Micro-Lock PLUS 505567 series
5055670371 Applications
There are a lot of Molex
5055670371 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
