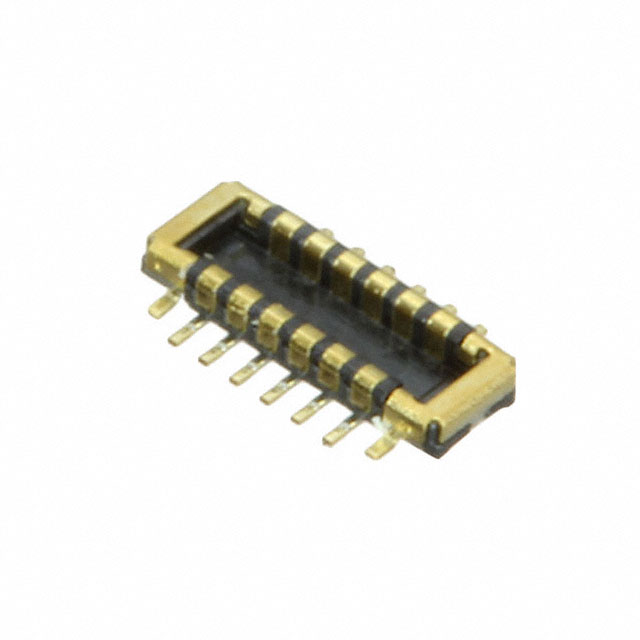

5050701220
Or copy the link below:
- Mfr.Part #
- 5050701220
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN PLUG 12POS SMD GOLD
- Stock
- 16,345
- In Stock ：
- 16,345
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Arrays, Edge Type, Mezzanine (Board to Board)
- Contact Gender :
- Male
- Height Above Board :
- 0.019 0.48mm
- DIN Conformance :
- No
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- JESD-609 Code :
- e4
- Filter Feature :
- No
- UL Flammability Code :
- 94V-0
- Contact Material :
- COPPER ALLOY
- Feature :
- Solder Retention
- Number of Positions :
- 12
- Published :
- 2015
- Factory Lead Time :
- 8 Weeks
- ECCN Code :
- EAR99
- Pitch :
- 0.014 0.35mm
- HTS Code :
- 8536.69.40.40
- Mixed Contacts :
- No
- Contact Finish :
- Gold
- Option :
- GENERAL PURPOSE
- IEC Conformance :
- No
- Packaging :
- Tape and Reel (TR)
- RoHS Status :
- ROHS3 Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Rows :
- 2
- Total Number of Contacts :
- 12
- MIL Conformance :
- No
- Pbfree Code :
- yes
- Series :
- SlimStack Armor 505070
- Stack Height (Mating) :
- 0.6mm
- Connector Type :
- Plug, Outer Shroud Contacts
- Mounting Type :
- Surface Mount
- Datasheets
- 5050701220
Plug, Outer Shroud Contacts Tape & Reel (TR) 2 Rows 0.014 0.35mm Surface Mount 12 Positions SlimStack Armor 505070 Gold COPPER ALLOY
5050701220 Overview
Packaging for this item is Plug, Outer Shroud Contacts.It is necessary to use a Tape & Reel (TR) case for packaging the product.There is a mounting type of Surface Mount for this device.This product is part of the SlimStack Armor 505070 Series.In operation, it is possible to ensure that Solder Retention is maintained.
5050701220 Features
SlimStack Armor 505070 series
Package / Case: Tape & Reel (TR)
Mounting Type:Surface Mount
5050701220 Applications
There are a lot of Molex
5050701220 Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
