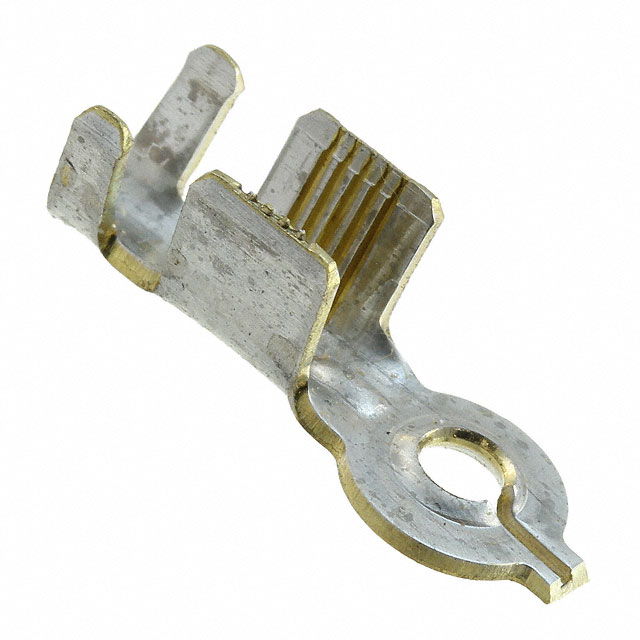

505036-1
Or copy the link below:
- Mfr.Part #
- 505036-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RING CIRC 14.5AWG #2 CRIMP
- Stock
- 30,301
- In Stock ：
- 30,301
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Ring Connectors
- Mount :
- Free Hanging
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Factory Lead Time :
- 12 Weeks
- Feature :
- Extruded, Serrated Termination
- Contact Material :
- Brass
- Mounting Type :
- Free Hanging (In-Line)
- Depth :
- 6.09mm
- Terminal Type :
- Circular
- Length :
- 15.75mm
- Stud/Tab Size :
- 2 Stud
- ELV :
- Compliant
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Insulated Wire Support :
- yes
- Pbfree Code :
- yes
- Contact Plating :
- Tin
- Stud Diameter :
- 2.223 mm
- Heavy Duty :
- No
- Termination :
- Crimp
- Length - Overall :
- 0.620 15.75mm
- Published :
- 2011
- HTS Code :
- 8536.90.40.00
- Tongue Thickness :
- 711.2μm
- Thickness :
- 0.250 6.40mm
- ECCN Code :
- EAR99
- Width - Outer Edges :
- 0.240 6.10mm
- Series :
- Amplivar
- Insulation Diameter :
- 2.8 mm
- Insulation :
- Non-Insulated
- Wire Gauge :
- 14.5 AWG
- Lead Free :
- Not Applicable
- Number of Holes :
- 1
- Orientation :
- Straight
- Wire/Cable Gauge :
- 14.5 AWG
- Packaging :
- Tape and Reel (TR)
- RoHS Status :
- RoHS Compliant
- Wire/Cable Diameter :
- 2.8 mm
- Stud Size :
- M2
- Terminal and Terminal Block Type :
- WIRE TERMINAL
- Diameter - Inside :
- 2.79 mm
- Material Thickness :
- 635μm
- Terminal Gender :
- FEMALE
- Datasheets
- 505036-1
