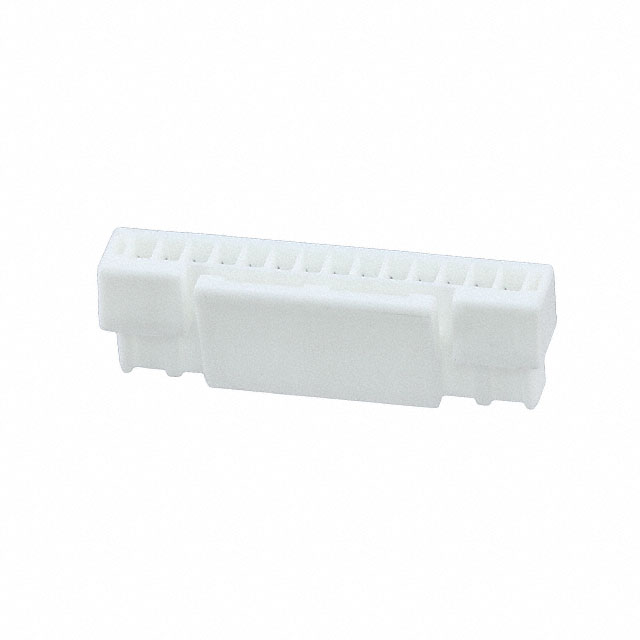

5041931400

Manufacturer :

Molex

Product Category :

Rectangular Connector Housings

Factory Lead Time :

11 Weeks

Color :

Natural

Operating Temperature (Min) :

-25°C

Pitch :

0.049 1.25mm

Total Number of Contacts :

14

Contact Type :

Non-Gendered

Published :

2014

Contact Termination :

Crimp

Packaging :

Tray

Mounting Type :

Free Hanging (In-Line)

Contact Gender :

FEMALE

Mounting Option 1 :

LOCKING

ECCN Code :

EAR99

Wire Size (Max) :

26 AWG

RoHS Status :

ROHS3 Compliant

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Reliability :

COMMERCIAL

Wire Size (Min) :

30 AWG

Contact Resistance :

20mOhm

Dielectric Withstanding Voltage :

700VAC V

Body Length or Diameter :

0.768 inch

Series :

Micro-Lock 504193

Number of Rows :

1

Operating Temperature (Max) :

85°C

Body Depth :

0.236 inch

Note :

Contacts Not Included

Durability :

30 Cycles

Reference Standard :

UL

Connector Type :

Receptacle

HTS Code :

8536.69.40.40

Number of Positions :

14

Polarization Key :

POLARIZED HOUSING

Fastening Type :

Latch Holder
