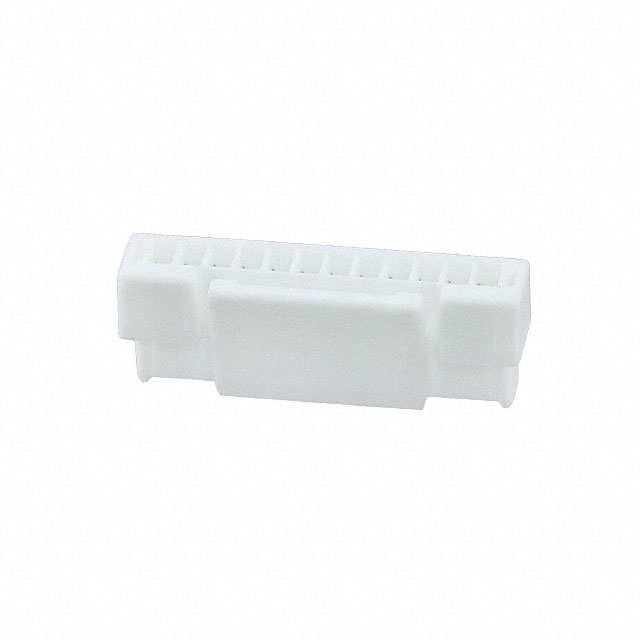

5041931200

Manufacturer :

Molex

Product Category :

Rectangular Connector Housings

Published :

2014

Contact Gender :

FEMALE

Connector Type :

Receptacle

Mounting Option 1 :

LOCKING

Factory Lead Time :

11 Weeks

Fastening Type :

Latch Holder

Wire Size (Max) :

26 AWG

Dielectric Withstanding Voltage :

700VAC V

ECCN Code :

EAR99

HTS Code :

8536.69.40.40

Color :

Natural

Wire Size (Min) :

30 AWG

Note :

Contacts Not Included

Reliability :

COMMERCIAL

Total Number of Contacts :

12

Polarization Key :

POLARIZED HOUSING

Number of Positions :

12

RoHS Status :

ROHS3 Compliant

Contact Type :

Non-Gendered

Operating Temperature (Min) :

-25°C

Series :

Micro-Lock 504193

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Body Depth :

0.236 inch

Packaging :

Tray

Number of Rows :

1

Operating Temperature (Max) :

85°C

Contact Termination :

Crimp

Body Length or Diameter :

0.669 inch

Contact Resistance :

20mOhm

Durability :

30 Cycles

Pitch :

0.049 1.25mm

Mounting Type :

Free Hanging (In-Line)

Reference Standard :

UL
