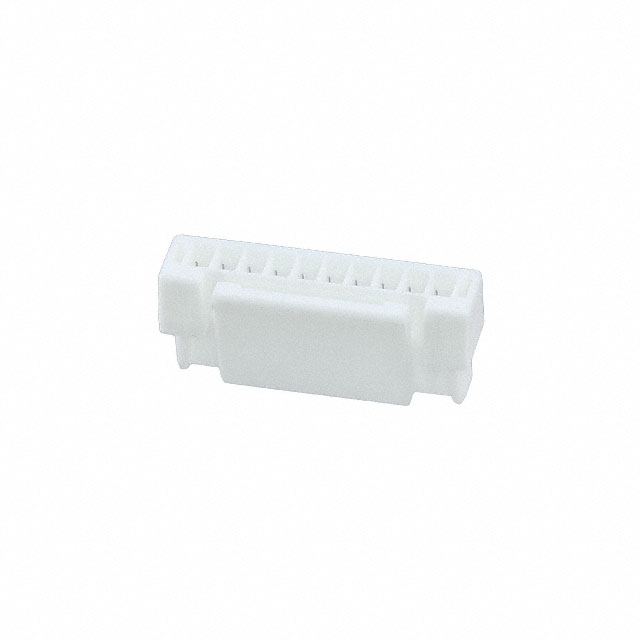

5041931000

Manufacturer :

Molex

Product Category :

Rectangular Connector Housings

Series :

Micro-Lock 504193

Dielectric Withstanding Voltage :

700VAC V

Mounting Type :

Free Hanging (In-Line)

Polarization Key :

POLARIZED HOUSING

RoHS Status :

ROHS3 Compliant

Operating Temperature (Max) :

85°C

Number of Rows :

1

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Positions :

10

Wire Size (Min) :

30 AWG

Reliability :

COMMERCIAL

Contact Resistance :

20mOhm

Mounting Option 1 :

LOCKING

Pbfree Code :

yes

Contact Type :

Non-Gendered

Operating Temperature (Min) :

-25°C

Published :

2014

Factory Lead Time :

11 Weeks

Contact Termination :

Crimp

Durability :

30 Cycles

Reference Standard :

UL

Contact Finish - Mating :

NOT SPECIFIED

Pitch :

0.049 1.25mm

Wire Size (Max) :

26 AWG

Total Number of Contacts :

10

Contact Gender :

FEMALE

Connector Type :

Receptacle

Note :

Contacts Not Included

Color :

Natural

Packaging :

Tray

Contact Material :

NOT SPECIFIED

Fastening Type :

Latch Holder

Body Depth :

0.236 inch
