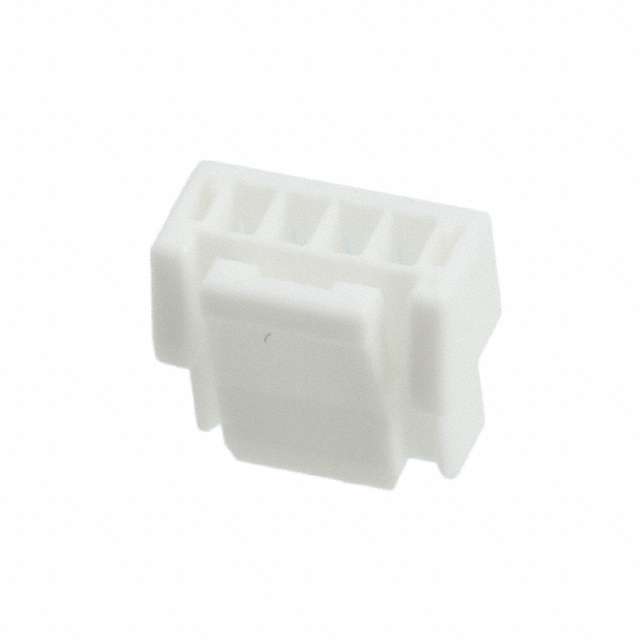

5041930400

Manufacturer :

Molex

Product Category :

Rectangular Connector Housings

Packaging :

Bulk

Wire Size (Max) :

26 AWG

Wire Size (Min) :

30 AWG

Contact Resistance :

20mOhm

Body Depth :

0.236 inch

Contact Termination :

Crimp

Durability :

30 Cycles

Dielectric Withstanding Voltage :

700VAC V

RoHS Status :

ROHS3 Compliant

Reliability :

COMMERCIAL

Connector Type :

Receptacle

Mounting Type :

Free Hanging (In-Line)

Factory Lead Time :

11 Weeks

Pitch :

0.049 1.25mm

Operating Temperature (Max) :

85°C

Reference Standard :

UL

Operating Temperature (Min) :

-25°C

Number of Rows :

1

Contact Type :

Non-Gendered

Contact Gender :

FEMALE

Body Length or Diameter :

0.276 inch

Polarization Key :

POLARIZED HOUSING

Mounting Option 1 :

LOCKING

Total Number of Contacts :

4

Fastening Type :

Latch Holder

Color :

Natural

Series :

Micro-Lock 504193

ECCN Code :

EAR99

Number of Positions :

4

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Published :

2014

Note :

Contacts Not Included
