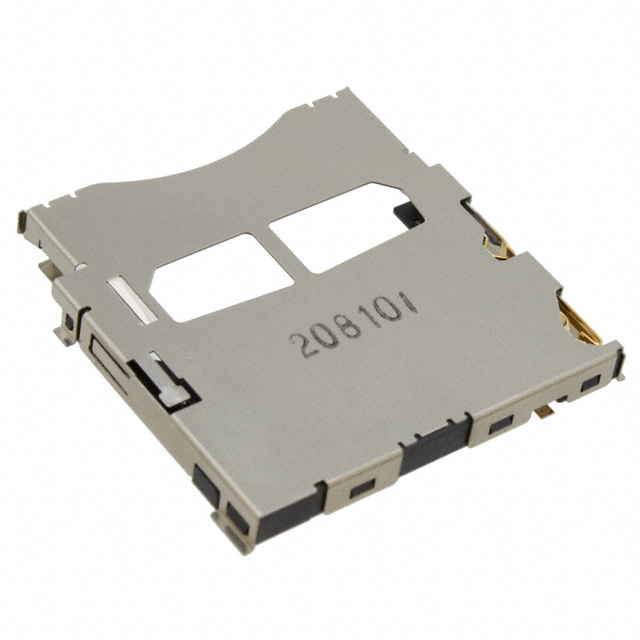

5035000991
- Mfr.Part #
- 5035000991
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN SD CARD PUSH-PUSH R/A SMD
- Stock
- 120
- In Stock :
- 120
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- PC Card Sockets
- Body Length or Diameter :
- 1.078 inch
- Rated Current (Signal) :
- 0.5A
- Option :
- GENERAL PURPOSE
- MIL Conformance :
- No
- Factory Lead Time :
- 17 Weeks
- PCB Contact Pattern :
- RECTANGULAR
- Pbfree Code :
- yes
- Published :
- 2014
- Connector Type :
- Connector and Ejector
- Number of Conductors :
- ONE
- Number of Positions :
- 12 (9 + 3)
- Insulation Material :
- Polymer
- Durability :
- 10000 Cycles
- Height Above Board :
- 0.116 2.95mm
- Contact Resistance :
- 100MOhm
- Body/Shell Style :
- Receptacle
- Terminal Pitch :
- 2.4892mm
- Mounting Feature :
- Normal, Standard - Top
- Contact Gender :
- Male
- Series :
- 503500
- Number of Ports :
- 1
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Packaging :
- Tape and Reel (TR)
- Body Depth :
- 1.078 inch
- Contact Finish :
- Gold
- Body Breadth :
- 0.116 inch
- Operating Temperature (Max) :
- 85°C
- RoHS Status :
- ROHS3 Compliant
- Insertion, Removal Method :
- Push In, Push Out
- Feature :
- Switch
- JESD-609 Code :
- e3
- DIN Conformance :
- No
- Card Type :
- Secure Digital - SD
- Reliability :
- COMMERCIAL
- Insulation Resistance :
- 1000000000Ohm
- Operating Temperature (Min) :
- -25°C
- Contact Pattern :
- RECTANGULAR
- Total Number of Contacts :
- 9
- IEC Conformance :
- No
- Number Of PCB Rows :
- 1
- Mating Contact Pitch :
- 0.098 inch
- Mounting Type :
- Surface Mount, Right Angle
- Dielectric Withstanding Voltage :
- 500VAC V
- Number of Rows :
- 1
- Contact Material :
- COPPER ALLOY
- Datasheets
- 5035000991
