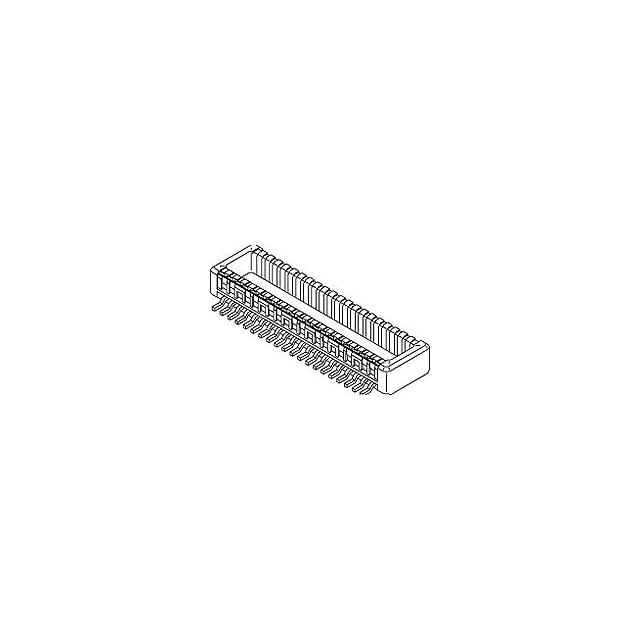

500334-0201
Or copy the link below:
- Mfr.Part #
- 500334-0201
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- 0.5 BTB PLG HSG ASSY 20CKT EMBST
- Stock
- 2,051
- In Stock ：
- 2,051
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Arrays, Edge Type, Mezzanine (Board to Board)
- Contact Finish Thickness :
- 10.0μin 0.25μm
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- RoHS Status :
- ROHS3 Compliant
- Pbfree Code :
- yes
- Total Number of Contacts :
- 20
- Number of Positions :
- 20
- Series :
- SlimStack 500334
- Contact Finish :
- Gold
- Mounting Type :
- Surface Mount
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Gender :
- Male
- Stack Height (Mating) :
- 2.5mm
- Packaging :
- Tape and Reel (TR)
- IEC Conformance :
- No
- Contact Material :
- Brass
- ECCN Code :
- EAR99
- Pitch :
- 0.020 0.50mm
- MIL Conformance :
- No
- DIN Conformance :
- No
- Height Above Board :
- 0.058 1.48mm
- UL Flammability Code :
- 94V-0
- Mixed Contacts :
- No
- Filter Feature :
- No
- Connector Type :
- Plug, Outer Shroud Contacts
- HTS Code :
- 8536.69.40.40
- Published :
- 2012
- Number of Rows :
- 2
- Option :
- GENERAL PURPOSE
- JESD-609 Code :
- e4
- Datasheets
- 500334-0201
Plug, Outer Shroud Contacts Tape & Reel (TR) 2 Rows 0.020 0.50mm Surface Mount 20 Positions SlimStack 500334 Gold BRASS
5003340201 Overview
This product is packaged in a Plug, Outer Shroud Contacts box.An Tape & Reel (TR) case is utilized for packaging the product.Surface Mount indicates that the device is mounted.The product is a part of the SlimStack 500334 Series.
5003340201 Features
SlimStack 500334 series
Package / Case: Tape & Reel (TR)
Mounting Type:Surface Mount
5003340201 Applications
There are a lot of Molex
5003340201 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
