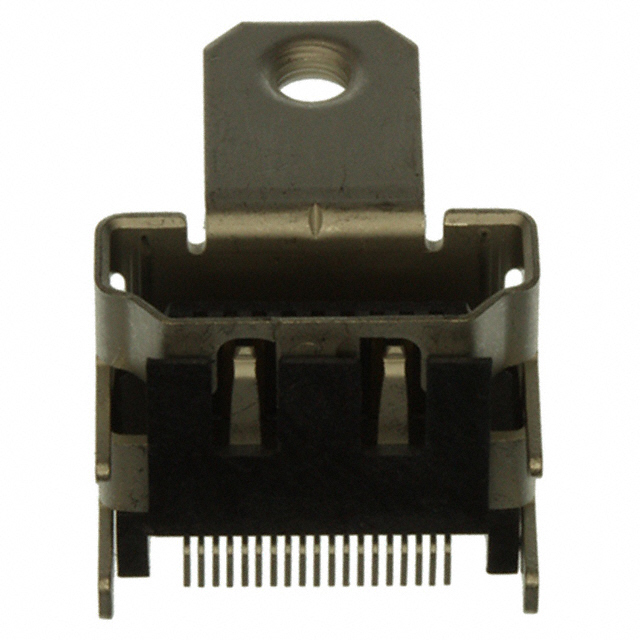

5002541931

Manufacturer :

Molex

Product Category :

USB, DVI, HDMI Connector Assemblies

Plating Thickness :

30μin

Contact Resistance :

30mOhm

PCB Contact Pattern :

RECTANGULAR

DIN Conformance :

No

Reference Standard :

UL

Mounting Feature :

Flange, Horizontal

Pbfree Code :

yes

Insertion Force-Max :

2.3352 N

Contact Finish :

Gold

Reliability :

COMMERCIAL

Published :

2011

Number Of PCB Rows :

1

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mixed Contacts :

No

Shell/Shielding Material :

COPPER ALLOY

Shielding :

Shielded

Dielectric Withstanding Voltage :

500VAC V

Empty Shell :

No

Contact Material :

NOT SPECIFIED

Mounting Option 1 :

M3x0.5

Termination :

Solder

Body Breadth :

0.632 inch

Operating Temperature :

-20°C~85°C

Shell Finish :

Tin-Copper

Number of Conductors :

ONE

Option :

GENERAL PURPOSE

Series :

500254

Gender :

Receptacle

Contact Style :

USB, SER A FLAT

Connector Type :

HDMI

Additional Feature :

PANEL MOUNTABLE

Mounting Option 2 :

Mounting Flange

Material Flammability Rating :

UL94 V-0

Polarization Key :

POLARIZED HOUSING

Number of Contacts :

19

Current Rating (Amps) :

0.5A

Withdrawl Force-Min :

.2502 N

IEC Conformance :

No

Factory Lead Time :

19 Weeks

Filter Feature :

No

RoHS Status :

ROHS3 Compliant

Voltage - Rated :

40VAC/DC

UL Flammability Code :

94V-0

Terminal Pitch :

0.508mm

Packaging :

Tray

Mounting Type :

Surface Mount, Right Angle; Through Hole

Body Depth :

0.478 inch

MIL Conformance :

No

Number of Ports :

1
