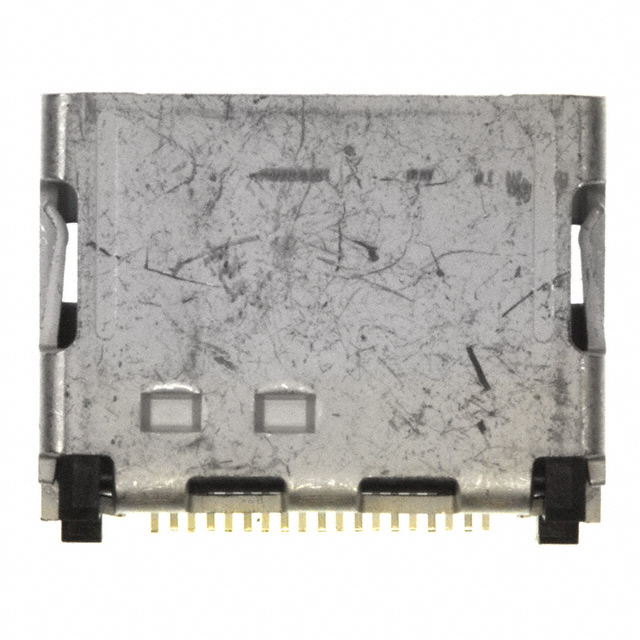

5002541927

Manufacturer :

Molex

Product Category :

USB, DVI, HDMI Connector Assemblies

Additional Feature :

ROHS COMPLIANT and 500 PCS/REEL

Voltage - Rated :

40VAC/DC

REACH SVHC :

No SVHC

Housing Material :

Thermoplastic

Flammability Rating :

UL94 V-0

Connector Type :

HDMI

Reliability :

COMMERCIAL

Filter Feature :

No

Contact Resistance :

30mOhm

IEC Conformance :

No

Length :

12.2mm

Packaging :

Tape and Reel (TR)

Termination :

Solder

Depth :

12.15mm

MIL Conformance :

No

Body Material :

Metal

Lead Pitch :

500μm

Contact Finish :

Gold

Halogen Free :

Low Halogen

Mounting Feature :

Horizontal

Polarization Key :

POLARIZED HOUSING

Current Rating (Amps) :

0.5A

Empty Shell :

No

Width :

15mm

Dielectric Withstanding Voltage :

500VAC V

Reference Standard :

UL

Orientation :

RIGHT ANGLE

Pbfree Code :

yes

Shielding :

Shielded

Option :

GENERAL PURPOSE

Number Of PCB Rows :

1

Mount :

Horizontal, PCB, Surface Mount

Series :

500254

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mounting Type :

Surface Mount, Right Angle; Through Hole

Withdrawl Force-Min :

.2502 N

Number of Conductors :

ONE

Lead Free :

Lead Free

Radiation Hardening :

No

Number of Positions :

19

Number of Ports :

1

DIN Conformance :

No

Mixed Contacts :

No

Contact Material :

Copper

Color :

Black

PCB Contact Pattern :

RECTANGULAR

Contact Style :

USB, SER A FLAT

Total Number of Contacts :

19

Plating Thickness :

30μin

Material Flammability Rating :

UL94 V-0

Shell Finish :

Tin

Gender :

Receptacle

RoHS Status :

ROHS3 Compliant

Operating Temperature :

-20°C~85°C

Operating Supply Voltage :

40V

Weight :

3.15499g

Pitch :

500μm

Insertion Force-Max :

2.3352 N

Shell/Shielding Material :

COPPER ALLOY

Current Rating :

500mA

Published :

2009

Height :

6.18mm

Body Breadth :

0.243 inch

UL Flammability Code :

94V-0
