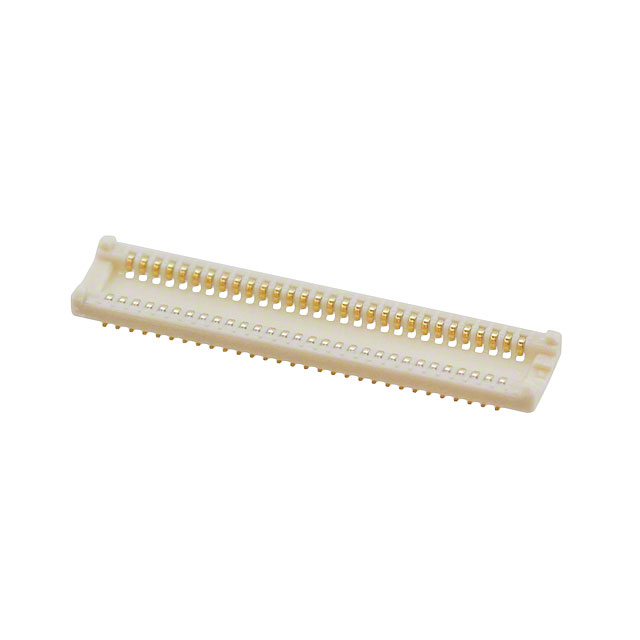

5000276041

Manufacturer :

Molex

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Mount :

Surface Mount

IEC Conformance :

No

Feature :

Solder Retention

Pitch :

0.016 0.40mm

Contact Finish :

Gold

Max Voltage Rating (AC) :

50V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Insulation Resistance :

100000000Ohm

Polarization Key :

POLARIZED HOUSING

Current Rating :

100mA

Number of Rows :

2

Durability :

10 Cycles

Height Above Board :

0.037 0.95mm

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Termination :

Solder

Orientation :

Vertical

UL Flammability Code :

94V-0

Published :

2008

Contact Material :

Bronze

REACH SVHC :

No SVHC

Reach Compliance Code :

Unknown

Mixed Contacts :

No

Max Operating Temperature :

85°C

Body Breadth :

0.115 inch

Packaging :

Tape and Reel (TR)

Number of Conductors :

ONE

DIN Conformance :

No

RoHS Status :

ROHS3 Compliant

Stack Height (Mating) :

0.95mm

Option :

GENERAL PURPOSE

Filter Feature :

No

Min Operating Temperature :

-25°C

Contact Style :

BELLOWED TYPE

Reference Standard :

UL

Housing Material :

Thermoplastic

MIL Conformance :

No

Halogen Free :

Low Halogen

Number of Contacts :

60

Voltage - Rated :

50V

Number Of PCB Rows :

2

Length :

13.7mm

Glow Wire Compliant :

Non-Compliant

Series :

SlimStack 500027

Connector Type :

Plug, Outer Shroud Contacts

PCB Contact Pattern :

RECTANGULAR

Reliability :

COMMERCIAL

Rated Current (Signal) :

0.1A

Contact Pattern :

RECTANGULAR

Pbfree Code :

yes

JESD-609 Code :

e4

Housing Color :

Natural

Body Depth :

0.037 inch

Contact Resistance :

90mOhm

Contact Gender :

Male

Mounting Type :

Surface Mount

Contact Finish Thickness :

3.94μin 0.10μm
