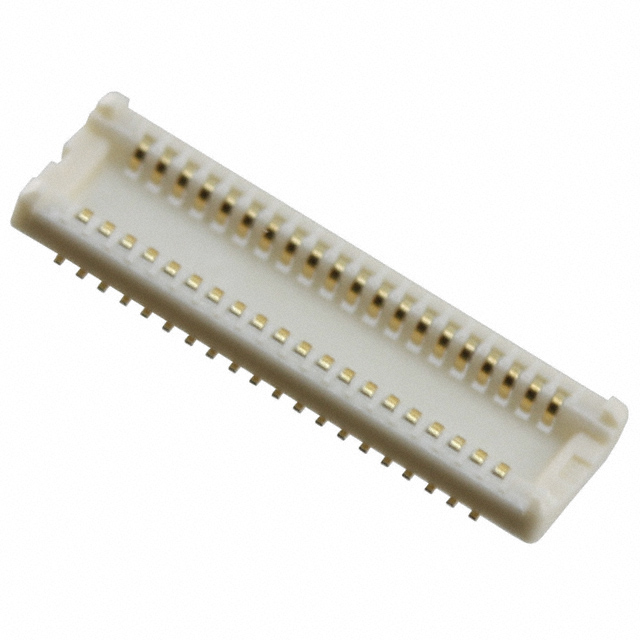

5000274041

Manufacturer :

Molex

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Feature :

Solder Retention

RoHS Status :

ROHS3 Compliant

Contact Material :

Phosphor Bronze

IEC Conformance :

No

Polarization Key :

POLARIZED HOUSING

UL Flammability Code :

94V-0

Published :

2009

Total Number of Contacts :

40

Body Depth :

0.037 inch

Durability :

10 Cycles

Option :

GENERAL PURPOSE

Contact Pattern :

RECTANGULAR

JESD-609 Code :

e4

Series :

SlimStack 500027

Contact Finish :

Gold

Packaging :

Tape and Reel (TR)

Operating Temperature (Max) :

85°C

Number of Conductors :

ONE

Stack Height (Mating) :

0.95mm

Insulator Color :

Natural

Contact Resistance :

90mOhm

Contact Style :

BELLOWED TYPE

Pitch :

0.016 0.40mm

Number of Positions :

40

Rated Current (Signal) :

0.1A

Mounting Type :

Surface Mount

Number Of PCB Rows :

2

Height Above Board :

0.037 0.95mm

Contact Finish Thickness :

3.94μin 0.10μm

Contact Gender :

Male

Reference Standard :

UL

Filter Feature :

No

Body Breadth :

0.115 inch

Reliability :

COMMERCIAL

Number of Rows :

2

DIN Conformance :

No

Connector Type :

Plug, Outer Shroud Contacts

Mixed Contacts :

No

MIL Conformance :

No

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Insulation Material :

Liquid Crystal Polymer (LCP)

Pbfree Code :

yes

Insulation Resistance :

100000000Ohm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

PCB Contact Pattern :

RECTANGULAR
