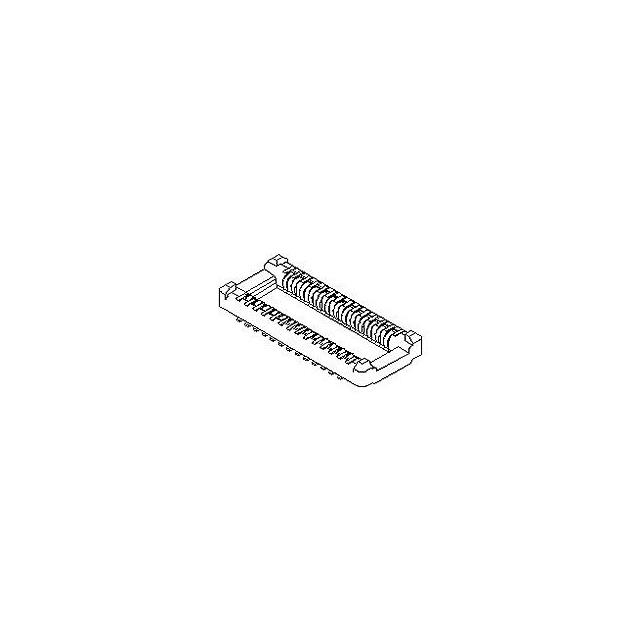

500027-4041

Manufacturer :

Molex

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Insulator Color :

Natural

PCB Contact Pattern :

RECTANGULAR

Contact Pattern :

RECTANGULAR

IEC Conformance :

No

Connector Type :

Plug, Outer Shroud Contacts

Number of Conductors :

ONE

Option :

GENERAL PURPOSE

Mixed Contacts :

No

Insulation Material :

Liquid Crystal Polymer (LCP)

JESD-609 Code :

e4

Contact Resistance :

90mOhm

RoHS Status :

ROHS3 Compliant

Durability :

10 Cycles

MIL Conformance :

No

Stack Height (Mating) :

0.95mm

Number of Rows :

2

Contact Material :

Phosphor Bronze

Insulation Resistance :

100000000Ohm

Number of Positions :

40

Published :

2009

UL Flammability Code :

94V-0

Reference Standard :

UL

Contact Gender :

Male

Body Depth :

0.037 inch

Filter Feature :

No

Reliability :

COMMERCIAL

Rated Current (Signal) :

0.1A

DIN Conformance :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Packaging :

Tape and Reel (TR)

Total Number of Contacts :

40

Series :

SlimStack 500027

Feature :

Solder Retention

Operating Temperature (Max) :

85°C

Contact Style :

BELLOWED TYPE

Pbfree Code :

yes

Contact Finish Thickness :

3.94μin 0.10μm

Number Of PCB Rows :

2

Pitch :

0.016 0.40mm

Mounting Type :

Surface Mount

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Contact Finish :

Gold

Body Breadth :

0.115 inch

Polarization Key :

POLARIZED HOUSING

Height Above Board :

0.037 0.95mm
