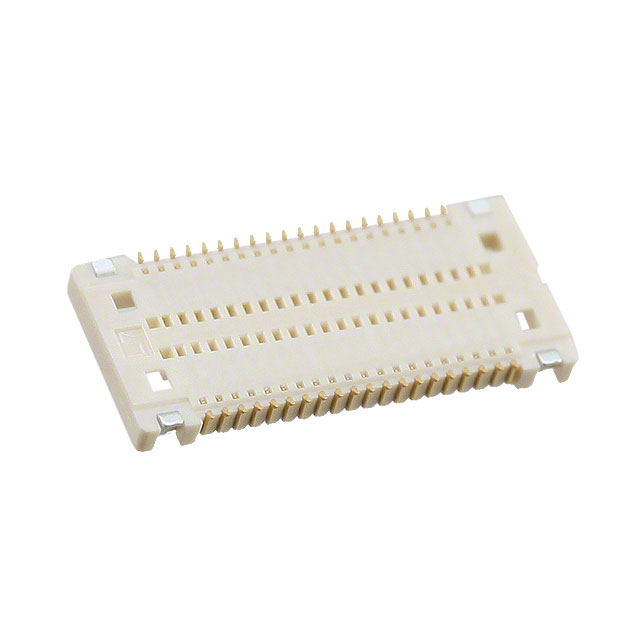

5000244071

Manufacturer :

Molex

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Radiation Hardening :

No

PCB Contact Pattern :

RECTANGULAR

Contact Material :

Bronze

Stack Height (Mating) :

0.95mm

Filter Feature :

No

Reliability :

COMMERCIAL

Feature :

Solder Retention

Rated Current (Signal) :

0.1A

Mixed Contacts :

No

Connector Type :

Receptacle, Center Strip Contacts

Lead Pitch :

400μm

Number of Circuits :

34

Number Of PCB Rows :

2

Contact Finish Thickness :

3.94μin 0.10μm

Pbfree Code :

yes

REACH SVHC :

Unknown

Housing Material :

Thermoplastic

Orientation :

Vertical

Gender :

Receptacle

Voltage - Rated :

50V

UL Flammability Code :

94V-0

Option :

GENERAL PURPOSE

DIN Conformance :

No

Published :

2013

Termination :

Solder

Body Breadth :

0.197 inch

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Min Operating Temperature :

-25°C

Number of Rows :

2

Number of Positions :

40

Total Number of Contacts :

40

Color :

Natural

Mount :

Surface Mount

Packaging :

Tape and Reel (TR)

Insulation Resistance :

100MOhm

Glow Wire Compliant :

Non-Compliant

Contact Resistance :

90mOhm

Additional Feature :

ROHS COMPLIANT and TAPE/REEL PKG

Pitch :

0.016 0.40mm

Current Rating :

100mA

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Durability :

10 Cycles

Depth :

5mm

Body Length or Diameter :

0.431 inch

Number of Conductors :

ONE

Max Operating Temperature :

85°C

Mounting Type :

Surface Mount

Contact Finish :

Gold

RoHS Status :

ROHS3 Compliant

Height Above Board :

0.037 0.95mm

Reference Standard :

UL

MIL Conformance :

No

Contact Style :

BELLOWED TYPE

Voltage - Rated DC :

50V

Contact Pattern :

RECTANGULAR

Flammability Rating :

UL94 V-0

IEC Conformance :

No

Series :

SlimStack 500024

Max Voltage Rating (AC) :

50V
