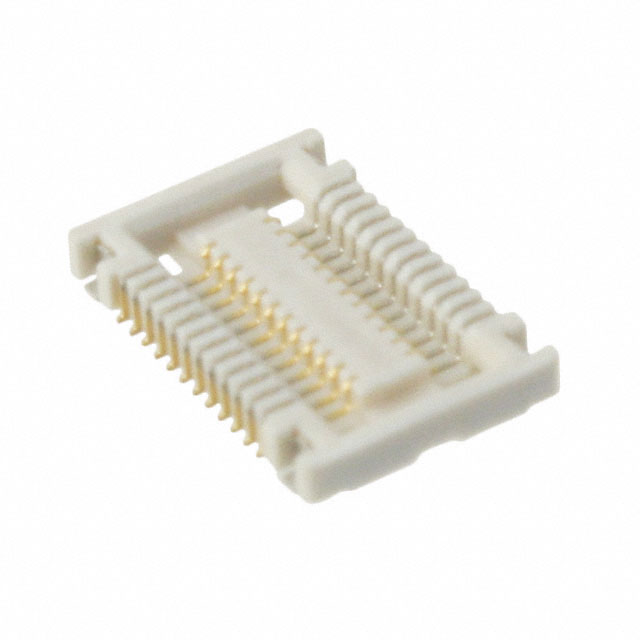

5000242481

Manufacturer :

Molex

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

DIN Conformance :

No

Reliability :

COMMERCIAL

Durability :

10 Cycles

ECCN Code :

EAR99

Packaging :

Tape and Reel (TR)

Board Mounting Option :

FITTING NAIL

Reference Standard :

UL

Contact Finish :

Gold

IEC Conformance :

No

Height Above Board :

0.037 0.95mm

Insulation Material :

Liquid Crystal Polymer (LCP)

Insulation Resistance :

100000000Ohm

Number of Positions :

24

Additional Feature :

ROHS COMPLIANT and TAPE/REEL PKG

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Conductors :

ONE

RoHS Status :

ROHS3 Compliant

Mounting Option 2 :

Friction Lock

Contact Gender :

FEMALE

UL Flammability Code :

94V-0

Body Breadth :

0.197 inch

Published :

2010

Pitch :

0.016 0.40mm

Number Of PCB Rows :

2

HTS Code :

8536.69.40.40

Feature :

Solder Retention

Series :

SlimStack 500024

Contact Pattern :

RECTANGULAR

Mounting Option 1 :

LOCKING

Contact Resistance :

90mOhm

Rated Current (Signal) :

0.1A

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Insulator Color :

Beige

Mixed Contacts :

No

Mounting Type :

Surface Mount

Connector Type :

Receptacle, Center Strip Contacts

Option :

GENERAL PURPOSE

Body Length or Diameter :

0.305 inch

Operating Temperature (Max) :

85°C

Contact Style :

BELLOWED TYPE

Stack Height (Mating) :

0.95mm

Number of Rows :

2

Contact Material :

NOT SPECIFIED

Contact Finish Thickness :

3.94μin 0.10μm

PCB Contact Pattern :

RECTANGULAR

Body Depth :

0.037 inch

Pbfree Code :

yes

Filter Feature :

No

MIL Conformance :

No

Total Number of Contacts :

24
