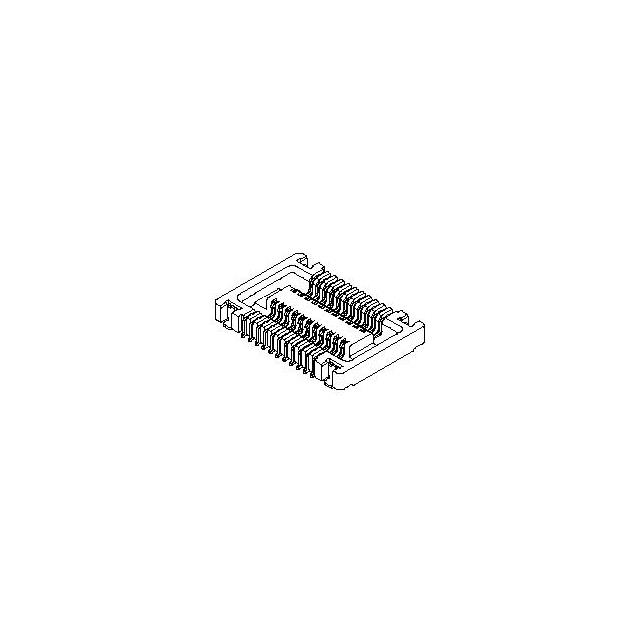

500024-2491
Or copy the link below:
- Mfr.Part #
- 500024-2491
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- 0.4 B/B REC HSG ASSY 24CKT EMBST
- Stock
- 3,914
- In Stock ：
- 3,914
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Arrays, Edge Type, Mezzanine (Board to Board)
- DIN Conformance :
- No
- Total Number of Contacts :
- 24
- Published :
- 2009
- Number of Positions :
- 24
- Pitch :
- 0.016 0.40mm
- HTS Code :
- 8536.69.40.40
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- MIL Conformance :
- No
- JESD-609 Code :
- e4
- Connector Type :
- Receptacle, Center Strip Contacts
- Height Above Board :
- 0.037 0.95mm
- Contact Gender :
- FEMALE
- Filter Feature :
- No
- Mounting Type :
- Surface Mount
- Contact Finish :
- Gold
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Stack Height (Mating) :
- 0.95mm
- RoHS Status :
- ROHS3 Compliant
- IEC Conformance :
- No
- Pbfree Code :
- yes
- Feature :
- Solder Retention
- Packaging :
- Tape and Reel (TR)
- UL Flammability Code :
- 94V-0
- Number of Rows :
- 2
- Series :
- SlimStack 500024
- Contact Material :
- Phosphor Bronze
- Contact Finish Thickness :
- 3.94μin 0.10μm
- Mixed Contacts :
- No
- Option :
- GENERAL PURPOSE
- ECCN Code :
- EAR99
- Datasheets
- 500024-2491
Receptacle, Center Strip Contacts Tape & Reel (TR) 2 Rows 0.016 0.40mm Surface Mount 24 Positions SlimStack 500024 Gold PHOSPHOR BRONZE
5000242491 Overview
The product is packaged in Receptacle, Center Strip Contacts.It has been determined that a Tape & Reel (TR) case is necessary to package the product.This device is mounted in the Surface Mount position.There is a product in the SlimStack 500024 Series.This can be ensured when the system is in operation by maintaining Solder Retention.
5000242491 Features
SlimStack 500024 series
Package / Case: Tape & Reel (TR)
Mounting Type:Surface Mount
5000242491 Applications
There are a lot of Molex
5000242491 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
