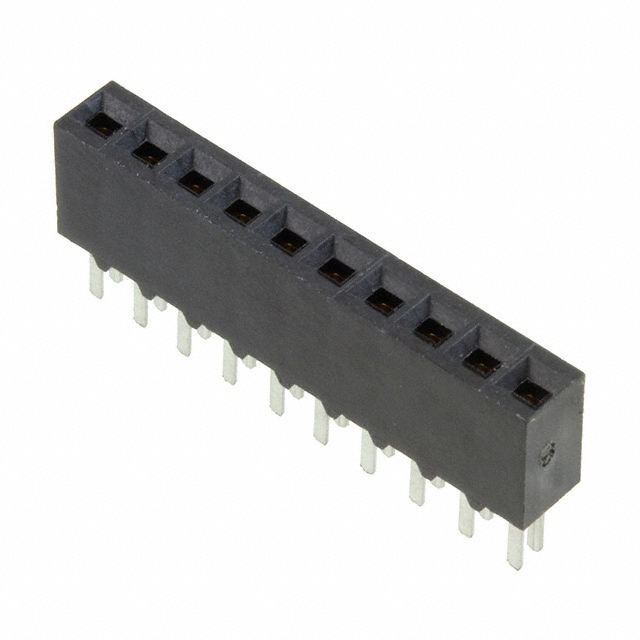

5-87879-2
Or copy the link below:
- Mfr.Part #
- 5-87879-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 10POS 0.1 GOLD PCB
- Stock
- 13,850
- In Stock ：
- 13,850
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Receptacles, Female Sockets
- Number Of PCB Rows :
- 1
- Connector Type :
- Receptacle, Bottom or Top Entry
- Filter Feature :
- No
- IEC Conformance :
- No
- Length - Tail :
- 2.921mm
- Series :
- AMPMODU Mod IV
- Contact Finish - Post :
- Tin
- Depth :
- 3.56mm
- Number of Rows :
- 1
- Contact Finish Thickness - Post :
- 150.0μin 3.81μm
- Pitch - Mating :
- 0.100 2.54mm
- Orientation :
- Vertical
- Style :
- Board to Board or Cable
- RoHS Status :
- RoHS Compliant
- Number of Positions Loaded :
- All
- Contact Current Rating :
- 2A
- Contact Type :
- Female Socket
- Reliability :
- COMMERCIAL
- Housing Color :
- Black
- Fastening Type :
- Push-Pull
- Number of Positions :
- 10
- Packaging :
- Tube
- PCB Contact Pattern :
- RECTANGULAR
- Dielectric Withstanding Voltage :
- 750VDC V
- Current Rating :
- 2A
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Pbfree Code :
- yes
- ELV :
- Compliant
- Approval Agency :
- CSA
- Mount :
- Through Hole
- PCB Thickness :
- 1.57mm
- HTS Code :
- 8536.69.40.40
- PCB Mount Retention :
- Without
- Contact Shape :
- Square
- Stackable :
- yes
- Contact Material :
- Phosphor Bronze
- High Temperature Compatible :
- No
- Material Flammability Rating :
- UL94 V-0
- Housing Material :
- Polyester
- Rated Current (Signal) :
- 2A
- Plating Thickness :
- 30μin
- Terminal Pitch :
- 2.54mm
- ECCN Code :
- EAR99
- Option :
- GENERAL PURPOSE
- Factory Lead Time :
- 14 Weeks
- Contact Gender :
- FEMALE
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- DIN Conformance :
- No
- Termination :
- Solder
- Lead Length :
- 2.92mm
- JESD-609 Code :
- e3
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Contact Finish - Mating :
- Gold
- Insulation Height :
- 0.267 6.78mm
- Insulation Material :
- Polyester, Glass Filled
- Operating Temperature :
- -65°C~125°C
- Contact Resistance :
- 12mOhm
- Insulation Resistance :
- 5GOhm
- Height :
- 6.79mm
- Contact Length - Post :
- 0.115 2.92mm
- MIL Conformance :
- No
- Published :
- 2008
- Flammability Rating :
- UL94 V-0
- Mounting Type :
- Through Hole
- Number of Conductors :
- ONE
- Length :
- 25.4mm
- Mixed Contacts :
- No
- Datasheets
- 5-87879-2
1 Rows Receptacle, Bottom or Top Entry Solder Phosphor Bronze Through Hole Tube Gold Polyester, Glass Filled 10 Positions Female Socket
5-87879-2 Overview
A Receptacle, Bottom or Top Entry package is included with it.Its mounting type is Through Hole.Packaging is performed using a Tube case.It is part of the AMPMODU Mod IV Series of products.Through Hole mounts the part.There is no operating temperature for the device.
5-87879-2 Features
AMPMODU Mod IV series
5-87879-2 Applications
There are a lot of TE Connectivity AMP Connectors
5-87879-2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
