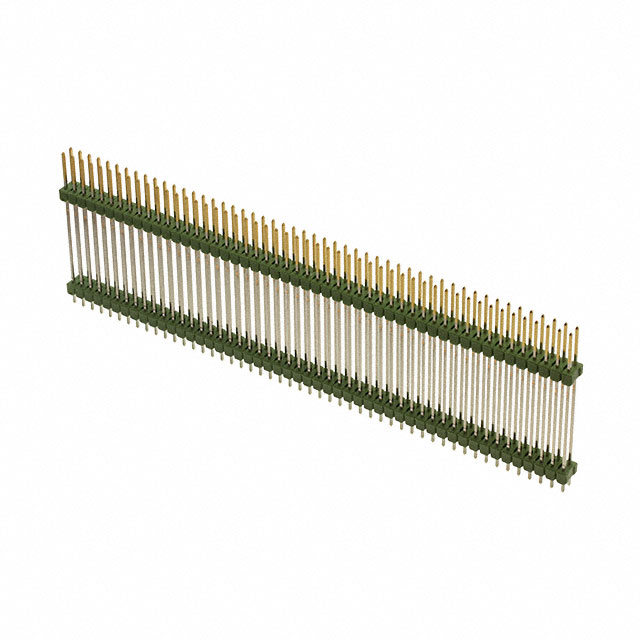

5-829822-0
Or copy the link below:
- Mfr.Part #
- 5-829822-0
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HDR 100POS 0.1 STACK T/H
- Stock
- 150
- In Stock ：
- 150
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Board Spacers, Stackers (Board to Board)
- Number of Rows :
- 2
- PCB Mounting Orientation :
- Vertical
- Number of Positions :
- 100
- PCB Mount Retention :
- Without
- Plating :
- Gold
- Contact Finish - Post (Mating) :
- Gold
- Factory Lead Time :
- 14 Weeks
- Stackable :
- yes
- Housing Color :
- Green
- Housing Material :
- Polybutylene
- Contact Gender :
- Male
- Lead Length :
- 3mm
- Termination :
- Solder
- ELV :
- Compliant
- Published :
- 2011
- Color :
- Green
- Contact Current Rating :
- 5A
- Contact Shape :
- Square
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Contact Material :
- Copper, Tin
- Contact Finish Thickness - Post (Mating) :
- 31.5μin 0.80μm
- Row Spacing :
- 0.100 (2.54mm)
- Length - Overall Pin :
- 1.551 39.400mm
- Mating Post Length :
- 5mm
- Length :
- 127mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Depth :
- 5mm
- Contact Plating :
- Gold
- Current Rating :
- 2A
- Length - Tail :
- 0.118 3.000mm
- Gender :
- Male
- Stack Height :
- 27.3mm
- Series :
- AMPMODU Mod II
- Min Operating Temperature :
- -65°C
- Packaging :
- Bulk
- Orientation :
- Vertical
- RoHS Status :
- RoHS Compliant
- Pitch :
- 0.100 2.54mm
- Connector Type :
- Header, Pin, Plug
- Insulation Resistance :
- 5GOhm
- Length - Post (Mating) :
- 0.358 9.100mm
- Mounting Type :
- Through Hole
- Max Operating Temperature :
- 125°C
- Length - Stack Height :
- 1.075 27.300mm
- Number of Contacts :
- 50
- Datasheets
- 5-829822-0
AMPMODU Mod II Series Header, Pin, Plug 2 Rows Solder 0.100 2.54mm Bulk Through Hole 100 Positions Green
5-829822-0 Overview
Packaging is Header, Pin, Plug.Through Hole is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the AMPMODU Mod II Series, it can be found in this category.Temperatures below 125°C are best for using it.There's a minimum temperature of -65°C for this device.
5-829822-0 Features
AMPMODU Mod II series
5-829822-0 Applications
There are a lot of TE Connectivity AMP Connectors
5-829822-0 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
