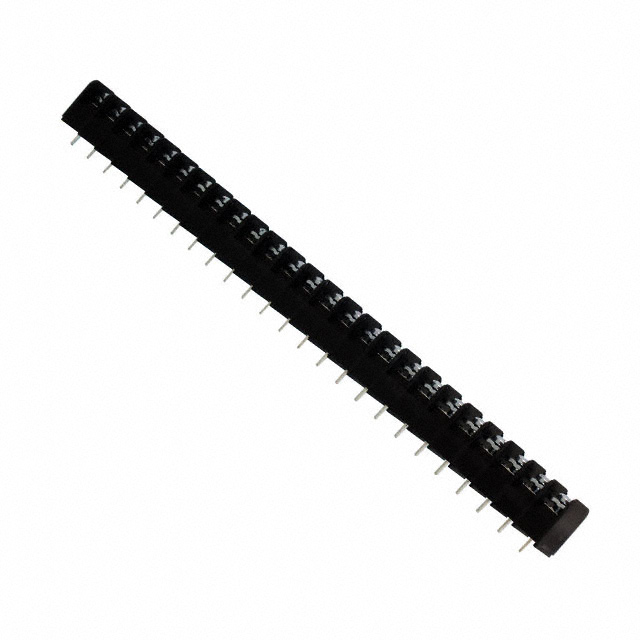

5-796985-1
Or copy the link below:
- Mfr.Part #
- 5-796985-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN BARRIER STRP 25CIRC 0.375"
- Stock
- 1,049
- In Stock ：
- 1,049
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Barrier Blocks
- Max Supply Voltage :
- 300V
- Length :
- 239.6744mm
- Wire Gauge (Min) :
- 12 AWG
- Housing Color :
- Black
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Current Rating :
- 20A
- Number of Wire Entries :
- 25
- Wire Gauge (Max) :
- 22 AWG
- Number of Contacts :
- 25
- Pitch :
- 0.375 9.53mm
- Termination :
- Solder
- Radiation Hardening :
- No
- Material Flammability Rating :
- UL94 V-0
- Number of Circuits :
- 25
- Max Current Rating :
- 20A
- Contact Plating :
- Tin
- Operating Temperature :
- 105°C
- Mounting Type :
- Through Hole
- Orientation :
- Straight
- Housing Material :
- Thermoplastic
- Material - Insulation :
- Thermoplastic
- Depth :
- 16mm
- Flammability Rating :
- UL94 V-0
- ELV :
- Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Packaging :
- Bulk
- Voltage :
- 300V
- Factory Lead Time :
- 21 Weeks
- Barrier Type :
- 2 Wall (Dual)
- Terminal Screw Finish :
- Zinc, Clear Chromate
- Published :
- 2007
- Number of Rows :
- 1
- Terminal Screw Material :
- Steel
- Current Rating (Amps) :
- 20A
- Voltage - Rated :
- 300V
- Number of Positions :
- 25
- Mount :
- Through Hole
- Series :
- JC6, Buchanan
- RoHS Status :
- RoHS Compliant
- Top Termination :
- Screws with Captive Plate
- Terminal Block Type :
- Barrier Block
- Bottom Termination :
- PC Pin
- Number of Levels :
- 1
- Color :
- Black
- Wire Gauge :
- 12-22 AWG
- Datasheets
- 5-796985-1
Bulk 1 Rows Through Hole Barrier Block PC Pin JC6, Buchanan 0.375 9.53mm 2 Wall (Dual) 25 Circuits Thermoplastic
5-796985-1 Overview
Its mounting type is Through Hole.Packaging is performed using a Bulk case.It is part of the JC6, Buchanan Series of products.Through Hole mounts the part.25 circuits make up the part.There is no operating temperature for the device.This chip should not be supplied with a voltage greater than 300V.
5-796985-1 Features
JC6, Buchanan series
5-796985-1 Applications
There are a lot of TE Connectivity AMP Connectors
5-796985-1 Terminal Blocks applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
