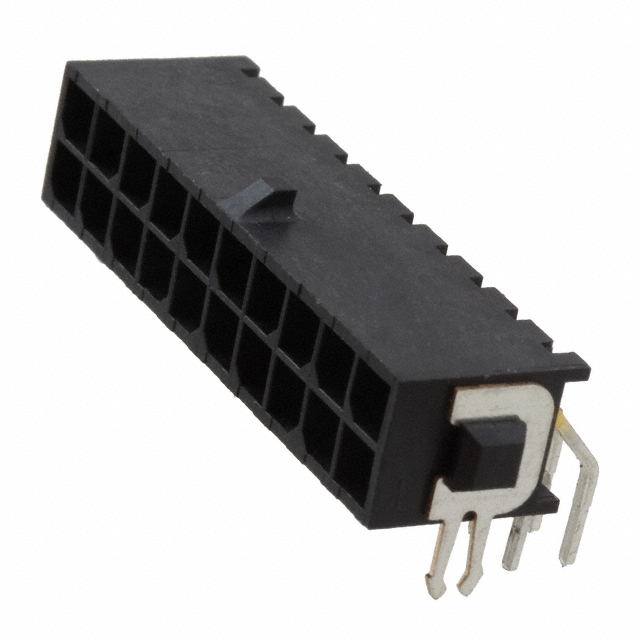

5-794679-0
Or copy the link below:
- Mfr.Part #
- 5-794679-0
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 20POS 3MM
- Stock
- 33,411
- In Stock ：
- 33,411
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Number of Conductors :
- ONE
- IEC Conformance :
- No
- Plating Thickness :
- 760 nm
- Pitch - Mating :
- 0.118 3.00mm
- Number of Rows :
- 2
- Packaging :
- Tray
- RoHS Status :
- RoHS Compliant
- Operating Temperature :
- -40°C~105°C
- Connector Type :
- Header
- ELV :
- Compliant
- Applications :
- GENERAL PURPOSE
- Material Flammability Rating :
- UL94 V-0
- Current Rating (Amps) :
- Varies by WireGAuge
- Number of Power Positions :
- 20
- Lead Length :
- 3.18mm
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Shrouding :
- Shrouded - 4 Wall
- Fastening Type :
- Locking Ramp
- Current Rating :
- 5A
- Row Spacing - Mating :
- 0.118 (3.00mm)
- Insulation Height :
- 0.290 7.37mm
- Body Length or Diameter :
- 1.339 inch
- Flammability Rating :
- UL94 V-0
- Polarization Key :
- POLARIZED HOUSING
- Contact Material :
- Brass
- PCB Contact Pattern :
- RECTANGULAR
- Contact Finish - Post :
- Tin
- Published :
- 2007
- DIN Conformance :
- No
- Style :
- Board to Cable/Wire
- Contact Plating :
- Gold, Tin
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Contact Retention :
- Without
- Reliability :
- COMMERCIAL
- Empty Shell :
- No
- Feature :
- Board Lock
- Total Number of Contacts :
- 20
- Number Of PCB Rows :
- 2
- Contact Type :
- Male Pin
- Insulation Color :
- Black
- Orientation :
- RIGHT ANGLE
- Insulation Material :
- Polyamide (PA), Nylon
- Mounting Type :
- Through Hole, Right Angle
- Termination :
- Solder
- Contact Shape :
- Square
- Series :
- Micro MATE-N-LOK
- Sealable :
- No
- Pbfree Code :
- yes
- Operating Supply Voltage :
- 250V
- MIL Conformance :
- No
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Contact Finish - Mating :
- Gold
- Number of Positions Loaded :
- All
- Filter Feature :
- No
- Reference Standard :
- UL, CSA
- Housing Material :
- Nylon
- Circuit Application :
- Power
- Mixed Contacts :
- No
- Mount :
- Through Hole
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Factory Lead Time :
- 15 Weeks
- Number of Signal Positions :
- 0
- JESD-609 Code :
- e3
- Datasheets
- 5-794679-0
5-794679-0 Documents
Micro MATE-N-LOK Series 2-Row Header Solder Brass Tray Through Hole, Right Angle Gold Polyamide (PA), Nylon Board to Cable/Wire 0.290 7.37mm Height
5-794679-0 Overview
Currently, it is packaged in Header.The mounting type of the device is Through Hole, Right Angle.A Tray case is used to package the product.A product of the Micro MATE-N-LOK Series, it belongs to the range of products of that series.This device may be used for the purpose of General Purpose.A number of features make the Board Lock feature more powerful.Through Hole represents the mounting point for the part.You're going to need 250V to power this memory.-40°C~105°C Operating Temperature is the default operating temperature for the device.
5-794679-0 Features
Micro MATE-N-LOK series
5-794679-0 Applications
There are a lot of TE Connectivity AMP Connectors
5-794679-0 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
