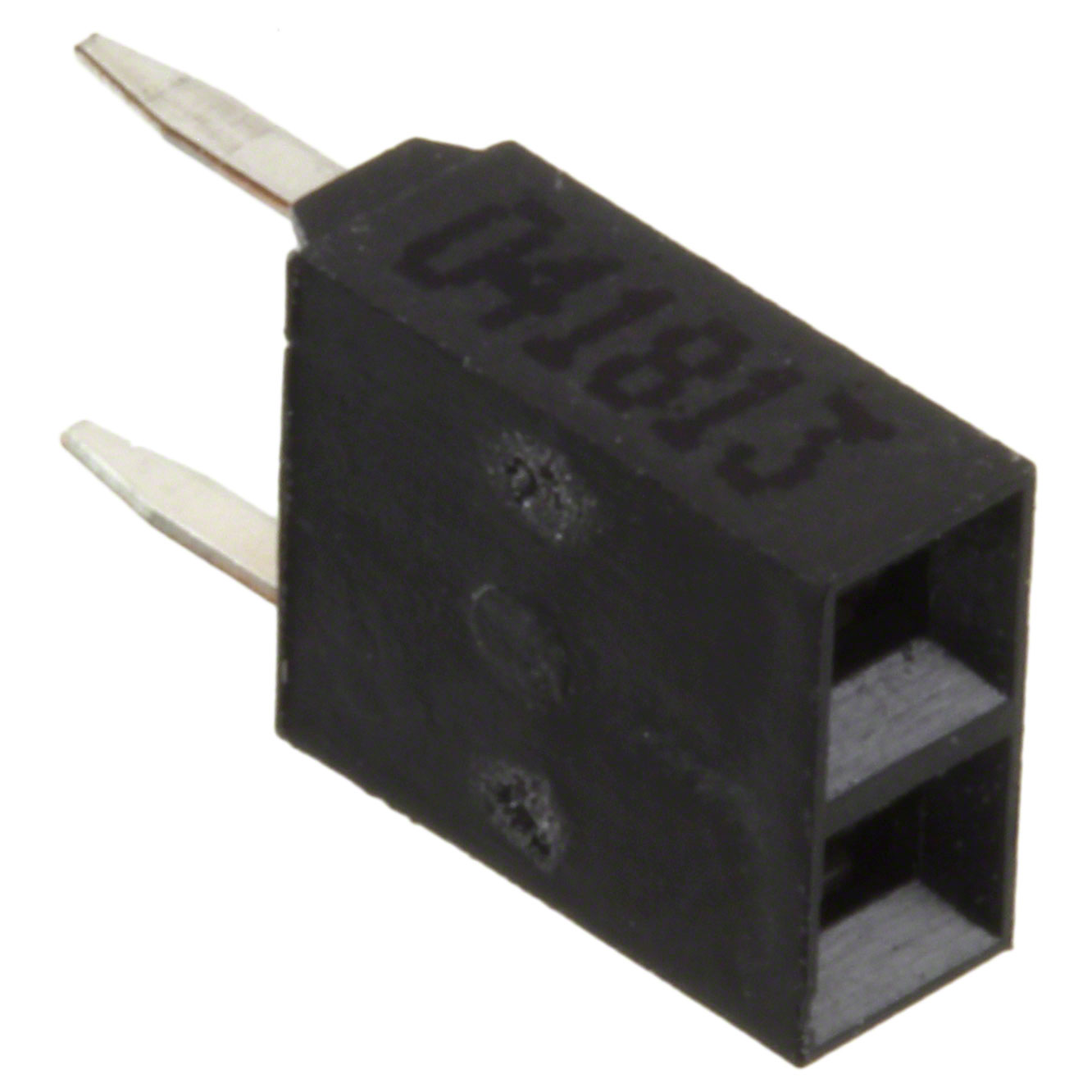

5-535585-3
Or copy the link below:
- Mfr.Part #
- 5-535585-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 2POS TIN PCB
- Stock
- 8,818
- In Stock ：
- 8,818
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Receptacles, Female Sockets
- Orientation :
- Vertical
- Packaging :
- Tube
- Insulation Material :
- Thermoplastic, Glass Filled
- Number of Positions :
- 2
- Row Spacing - Mating :
- 0.100 (2.54mm)
- JESD-609 Code :
- e3
- Mount :
- Through Hole
- Housing Color :
- Black
- Contact Material :
- Phosphor Bronze
- Contact Finish Thickness - Mating :
- 100.0μin 2.54μm
- High Temperature Compatible :
- No
- UL Flammability Code :
- 94V-0
- Operating Temperature :
- -65°C~125°C
- Operating Supply Voltage :
- 333V
- Published :
- 2008
- RoHS Status :
- RoHS Compliant
- Housing Material :
- Thermoplastic
- MIL Conformance :
- No
- Approval Agency :
- CSA
- Number of Positions Loaded :
- All
- PCB Thickness :
- 1.57mm
- Factory Lead Time :
- 14 Weeks
- Contact Length - Post :
- 0.125 3.18mm
- Length - Tail :
- 3.18mm
- Pbfree Code :
- yes
- Option :
- GENERAL PURPOSE
- Connector Type :
- Receptacle
- Number of Rows :
- 2
- Material Flammability Rating :
- UL94 V-0
- DIN Conformance :
- No
- Contact Current Rating :
- 2A
- Series :
- AMPMODU Mod IV
- Pitch :
- 2.54mm
- Insulation Resistance :
- 5GOhm
- Plating Thickness :
- 2.54μm
- PCB Mount Retention :
- Without
- Termination :
- Solder
- Flammability Rating :
- UL94 V-0
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Lead Length :
- 3.175mm
- Mounting Type :
- Through Hole
- Filter Feature :
- No
- Stackable :
- yes
- Contact Finish - Mating :
- Tin
- Length :
- 2.54mm
- Insulation Height :
- 0.265 6.73mm
- Depth :
- 5.03mm
- Current Rating :
- 2A
- ELV :
- Compliant
- Height :
- 5.03mm
- Additional Feature :
- LOW PROFILE
- Contact Shape :
- Square
- Contact Resistance :
- 12mOhm
- Style :
- Board to Board or Cable
- Fastening Type :
- Push-Pull
- Contact Type :
- Female Socket
- Mixed Contacts :
- No
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- IEC Conformance :
- No
- Datasheets
- 5-535585-3
2 Rows Receptacle Solder Phosphor Bronze Through Hole Tube Tin Thermoplastic, Glass Filled 2 Positions Female Socket
5-535585-3 Overview
Currently, it is packaged in Receptacle.The mounting type of the device is Through Hole.A Tube case is used to package the product.A product of the AMPMODU Mod IV Series, it belongs to the range of products of that series.Furthermore, there are other features available, such as LOW PROFILE, to name a few.Through Hole represents the mounting point for the part.You're going to need 333V to power this memory.-65°C~125°C Operating Temperature is the default operating temperature for the device.
5-535585-3 Features
AMPMODU Mod IV series
5-535585-3 Applications
There are a lot of TE Connectivity AMP Connectors
5-535585-3 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
