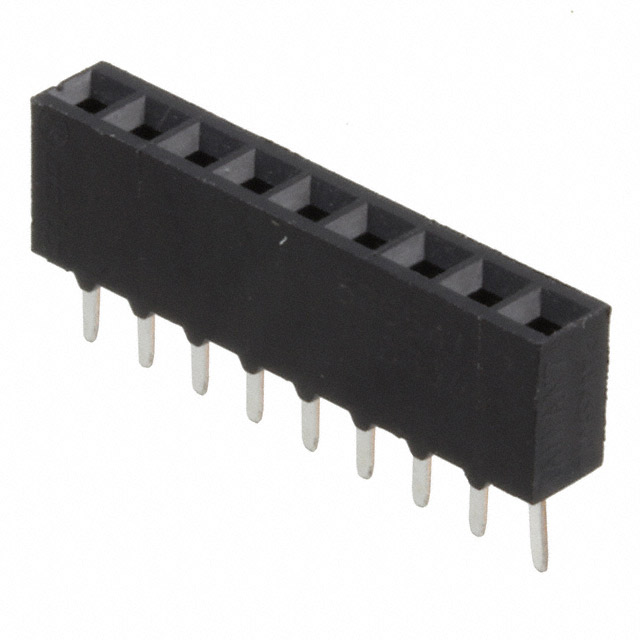

5-535584-8
Or copy the link below:
- Mfr.Part #
- 5-535584-8
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 9POS 0.1 TIN PCB
- Stock
- 2,366
- In Stock ：
- 2,366
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Receptacles, Female Sockets
- Terminal Pitch :
- 2.54mm
- Filter Feature :
- No
- Number of Positions :
- 9
- Flammability Rating :
- UL94 V-0
- Lead Length :
- 3.175mm
- Insulation Resistance :
- 5GOhm
- Factory Lead Time :
- 14 Weeks
- High Temperature Compatible :
- No
- ELV :
- Compliant
- Number of Positions Loaded :
- All
- Series :
- AMPMODU Mod IV
- Stackable :
- yes
- Insulation Height :
- 0.265 6.73mm
- DIN Conformance :
- No
- Pbfree Code :
- yes
- Contact Current Rating :
- 2A
- Housing Color :
- Black
- Contact Length - Post :
- 0.125 3.18mm
- MIL Conformance :
- No
- IEC Conformance :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- PCB Mount Retention :
- Without
- Operating Temperature :
- -65°C~125°C
- Contact Shape :
- Square
- Option :
- GENERAL PURPOSE
- JESD-609 Code :
- e3
- Height :
- 3.56mm
- Style :
- Board to Board or Cable
- Packaging :
- Tube
- Contact Resistance :
- 12mOhm
- Number of Rows :
- 1
- Approval Agency :
- CSA
- Contact Finish Thickness - Mating :
- 150.0μin 3.81μm
- Contact Finish Thickness - Post :
- 150.0μin 3.81μm
- Published :
- 2008
- RoHS Status :
- RoHS Compliant
- Mount :
- Through Hole
- Connector Type :
- Receptacle
- PCB Thickness :
- 2.4mm
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Insulation Material :
- Thermoplastic, Glass Filled
- Housing Material :
- Thermoplastic
- Fastening Type :
- Push-Pull
- Operating Supply Voltage :
- 333V
- Contact Type :
- Female Socket
- Mixed Contacts :
- No
- Plating Thickness :
- 2.54μm
- Contact Finish - Mating :
- Tin
- Contact Material :
- Phosphor Bronze
- Material Flammability Rating :
- UL94 V-0
- Pitch - Mating :
- 0.100 2.54mm
- Termination :
- Solder
- Length - Tail :
- 3.18mm
- Mounting Type :
- Through Hole
- Orientation :
- Vertical
- Datasheets
- 5-535584-8
1 Rows Receptacle Solder Phosphor Bronze Through Hole Tube Tin Thermoplastic, Glass Filled 9 Positions Female Socket
5-535584-8 Overview
This product is packaged in a Receptacle box.Through Hole indicates that the device is mounted.An Tube case is utilized for packaging the product.The product is a part of the AMPMODU Mod IV Series.By Through Hole, the part is mounted.The operating voltage of this memory is 333V.Operating temperature is set to -65°C~125°C.
5-535584-8 Features
AMPMODU Mod IV series
5-535584-8 Applications
There are a lot of TE Connectivity AMP Connectors
5-535584-8 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
