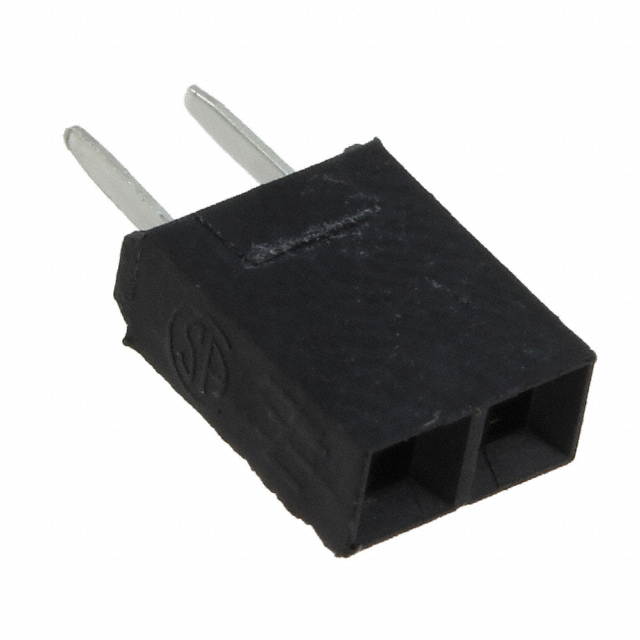

5-535542-1
Or copy the link below:
- Mfr.Part #
- 5-535542-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 2POS GOLD PCB
- Stock
- 1,973
- In Stock ：
- 1,973
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Receptacles, Female Sockets
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Fastening Type :
- Push-Pull
- JESD-609 Code :
- e3
- Number of Positions :
- 2
- Approval Agency :
- CSA
- Contact Current Rating :
- 3A
- Material Flammability Rating :
- UL94 V-0
- Mounting Type :
- Through Hole
- Housing Material :
- Polyester
- Operating Supply Voltage :
- 333V
- IEC Conformance :
- No
- Number of Positions Loaded :
- All
- Current Rating :
- 2A
- Sealable :
- No
- Lead Length :
- 3.302mm
- Pbfree Code :
- yes
- Housing Color :
- Black
- PCB Mount Retention :
- Without
- Termination :
- Solder
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Connector Type :
- Receptacle, Bottom or Top Entry
- Height :
- 5.03mm
- ELV :
- Compliant
- Packaging :
- Tray
- Orientation :
- Vertical
- Stackable :
- yes
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Contact Shape :
- Square
- Additional Feature :
- AMPMODU, LOW PROFILE
- Contact Finish - Mating :
- Gold
- Contact Type :
- Female Socket
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Mixed Contacts :
- No
- Pitch :
- 2.54mm
- RoHS Status :
- RoHS Compliant
- Filter Feature :
- No
- Contact Resistance :
- 12mOhm
- DIN Conformance :
- No
- Contact Finish Thickness - Post :
- 150.0μin 3.81μm
- Published :
- 2008
- Option :
- GENERAL PURPOSE
- Contact Length - Post :
- 0.130 3.30mm
- Insulation Height :
- 0.265 6.73mm
- Contact Material :
- Phosphor Bronze
- Contact Finish - Post :
- Tin
- Series :
- AMPMODU Mod IV
- MIL Conformance :
- No
- Mount :
- Through Hole
- Insulation Resistance :
- 5GOhm
- Insulation Material :
- Polyester, Glass Filled
- Number of Rows :
- 2
- PCB Thickness :
- 1.57mm
- Length - Tail :
- 3.3mm
- Factory Lead Time :
- 14 Weeks
- Operating Temperature :
- -65°C~125°C
- Style :
- Board to Board or Cable
- UL Flammability Code :
- 94V-0
- Flammability Rating :
- UL94 V-0
- Datasheets
- 5-535542-1
2 Rows Receptacle, Bottom or Top Entry Solder Phosphor Bronze Through Hole Tray Gold Polyester, Glass Filled 2 Positions Female Socket
5-535542-1 Overview
Packaging is in the form of Receptacle, Bottom or Top Entry.This device has a Through Hole mounting type.An orange Tray case is used to package the product.Specifically, it is one of the products in the AMPMODU Mod IV Series.Other features include AMPMODU, LOW PROFILE, to name just a few.There is a mounting hole at Through Hole.It runs on 333V voltage.Devices operate at -65°C~125°C operating temperatures.
5-535542-1 Features
AMPMODU Mod IV series
5-535542-1 Applications
There are a lot of TE Connectivity AMP Connectors
5-535542-1 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
