5-535541-7

Share

Or copy the link below:

Mfr.Part #
5-535541-7
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN RCPT 9POS 0.1 GOLD PCB
Stock
726
In Stock :
726

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Headers, Receptacles, Female Sockets
Pitch - Mating :
0.100 2.54mm
Terminal Pitch :
2.54mm
Material Flammability Rating :
UL94 V-0
Factory Lead Time :
14 Weeks
Flammability Rating :
UL94 V-0
PCB Thickness :
2.4mm
PCB Mount Retention :
Without
Operating Temperature :
-65°C~125°C
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
MIL Conformance :
No
Number of Positions Loaded :
All
Insulation Resistance :
5GOhm
Approval Agency :
CSA
IEC Conformance :
No
Contact Shape :
Square
Sealable :
No
Filter Feature :
No
Insulation Material :
Polyester, Glass Filled
Published :
2008
Contact Type :
Female Socket
Insulation Height :
0.265 6.73mm
Mount :
Through Hole
Operating Supply Voltage :
333V
Reliability :
COMMERCIAL
Stackable :
yes
Body Depth :
0.265 inch
Length - Tail :
3.3mm
Contact Current Rating :
3A
Contact Finish Thickness - Mating :
30.0μin 0.76μm
Style :
Board to Board or Cable
RoHS Status :
RoHS Compliant
Contact Material :
Phosphor Bronze
Contact Resistance :
12mOhm
DIN Conformance :
No
Dielectric Withstanding Voltage :
750VAC V
Pbfree Code :
yes
Contact Finish - Mating :
Gold
Contact Finish - Post :
Tin
Packaging :
Tube
Number Of PCB Rows :
1
Fastening Type :
Push-Pull
Number of Conductors :
ONE
Contact Finish Thickness - Post :
150.0μin 3.81μm
Series :
AMPMODU Mod IV
Voltage - Rated :
750V
Housing Color :
Black
Number of Rows :
1
Lifecycle Status :
ACTIVE (Last Updated: 4 days ago)
Contact Gender :
FEMALE
Number of Positions :
9
Option :
GENERAL PURPOSE
Contact Length - Post :
0.125 3.18mm
Mixed Contacts :
No
Mounting Type :
Through Hole
Lead Length :
3.175mm
Housing Material :
Polyester
Orientation :
Vertical
Additional Feature :
Top Entry
Termination :
Solder
Plating Thickness :
50μm
Connector Type :
Receptacle
Current Rating :
2A
Rated Current (Signal) :
2A
PCB Contact Pattern :
RECTANGULAR
Height :
3.56mm
ELV :
Compliant
Datasheets
5-535541-7
Introducing Headers, Receptacles, Female Sockets TE Connectivity AMP Connectors 5-535541-7 from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature:-65°C~125°C, Mounting Type:Through Hole, 5-535541-7 pinout, 5-535541-7 datasheet PDF, 5-535541-7 amp .Beyond Headers, Receptacles, Female Sockets TE Connectivity AMP Connectors 5-535541-7 ,we also offer 5031590300, PPPC022LFBN-RC, PPTC071LFBN-RC, Our vast inventory has you covered. Contact us now for immediate solutions.

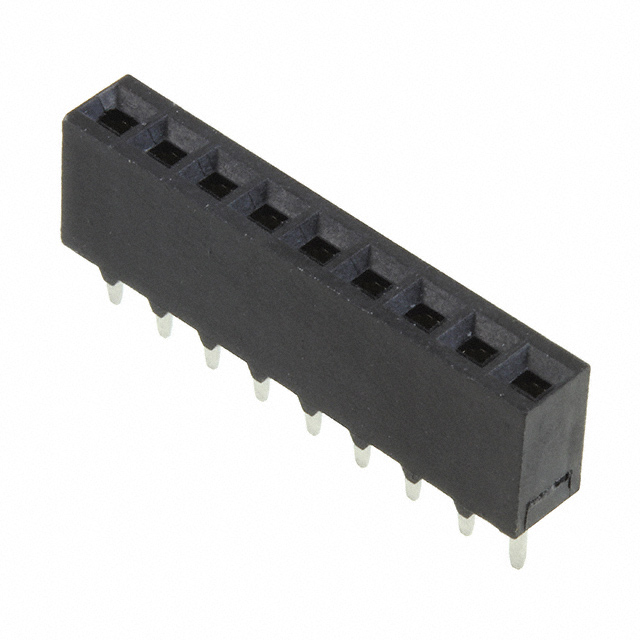

TE Connectivity AMP Connectors 5-535541-7


1 Rows Receptacle Solder Phosphor Bronze Through Hole Tube Gold Polyester, Glass Filled 9 Positions Female Socket

5-535541-7 Overview


Packaging is Receptacle.Through Hole is the mounting type.Packaging for the product is carried out via a Tube case.As a product of the AMPMODU Mod IV Series, it can be found in this category.There are also other features such as TOP ENTRY, to name only a few.In this case, Through Hole mounts the part.The memory's operating supply voltage is 333V.The device is operating at -65°C~125°C Operating Temperature.

5-535541-7 Features


AMPMODU Mod IV series


5-535541-7 Applications


There are a lot of TE Connectivity AMP Connectors
5-535541-7 Rectangular Connectors applications.
