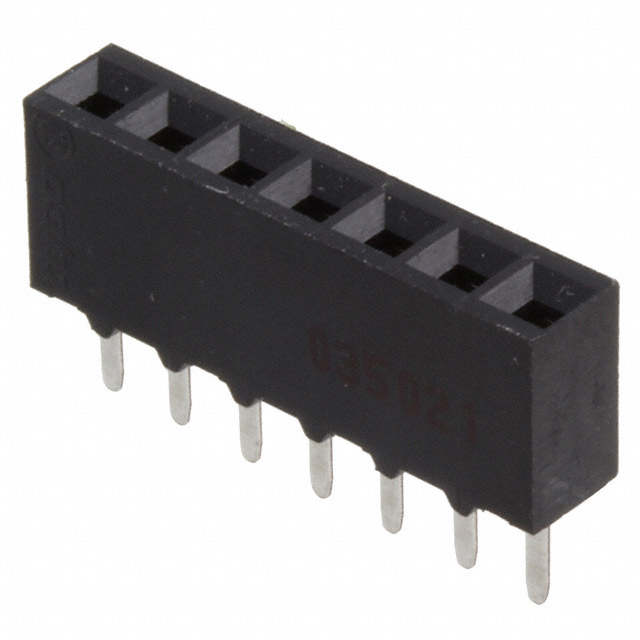

5-535541-5
Or copy the link below:
- Mfr.Part #
- 5-535541-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 7POS 0.1 GOLD PCB
- Stock
- 28,984
- In Stock ：
- 28,984
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Receptacles, Female Sockets
- Number Of PCB Rows :
- 1
- Contact Finish - Post :
- Tin
- Mixed Contacts :
- No
- Sealable :
- No
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Depth :
- 3.56mm
- Insulation Material :
- Polyester, Glass Filled
- Stackable :
- yes
- Pbfree Code :
- yes
- Housing Material :
- Polyester
- Approval Agency :
- CSA
- Style :
- Board to Board or Cable
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Number of Positions Loaded :
- All
- Number of Rows :
- 1
- PCB Contact Pattern :
- RECTANGULAR
- Additional Feature :
- Top Entry
- MIL Conformance :
- No
- Material Flammability Rating :
- UL94 V-0
- Number of Conductors :
- ONE
- Housing Color :
- Black
- Length :
- 17.78mm
- Insulation Resistance :
- 5GOhm
- Current Rating :
- 2A
- Length - Tail :
- 3.18mm
- Voltage - Rated :
- 750V
- ELV :
- Compliant
- Contact Length - Post :
- 0.125 3.18mm
- Height :
- 3.56mm
- Contact Finish Thickness - Post :
- 150.0μin 3.81μm
- Packaging :
- Tube
- Published :
- 2008
- RoHS Status :
- RoHS Compliant
- Series :
- AMPMODU Mod IV
- Contact Current Rating :
- 3A
- Lead Free :
- Lead Free
- Termination :
- Solder
- DIN Conformance :
- No
- Connector Type :
- Receptacle
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Reliability :
- COMMERCIAL
- Rated Current (Signal) :
- 2A
- Lead Length :
- 3.175mm
- Factory Lead Time :
- 14 Weeks
- IEC Conformance :
- No
- Contact Finish - Mating :
- Gold
- PCB Thickness :
- 2.4mm
- Mounting Type :
- Through Hole
- Mount :
- Through Hole
- Option :
- GENERAL PURPOSE
- Plating Thickness :
- 50μm
- Operating Supply Voltage :
- 333V
- Pitch - Mating :
- 0.100 2.54mm
- Contact Material :
- Phosphor Bronze
- PCB Mount Retention :
- Without
- Contact Type :
- Female Socket
- Insulation Height :
- 0.265 6.73mm
- Flammability Rating :
- UL94 V-0
- Orientation :
- Vertical
- Filter Feature :
- No
- Contact Shape :
- Square
- Contact Resistance :
- 12mOhm
- Terminal Pitch :
- 2.54mm
- Fastening Type :
- Push-Pull
- Number of Positions :
- 7
- Operating Temperature :
- -65°C~125°C
- Datasheets
- 5-535541-5
1 Rows Receptacle Solder Phosphor Bronze Through Hole Tube Gold Polyester, Glass Filled 7 Positions Female Socket
5-535541-5 Overview
The product is packaged in Receptacle.This device is mounted in the Through Hole position.It has been determined that a Tube case is necessary to package the product.There is a product in the AMPMODU Mod IV Series.To name a few, there is also TOP ENTRY.Part Through Hole is mounted to the part.333V is the operating supply voltage for this memory.As a result, the device runs at -65°C~125°C Operating Temperature.
5-535541-5 Features
AMPMODU Mod IV series
5-535541-5 Applications
There are a lot of TE Connectivity AMP Connectors
5-535541-5 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
