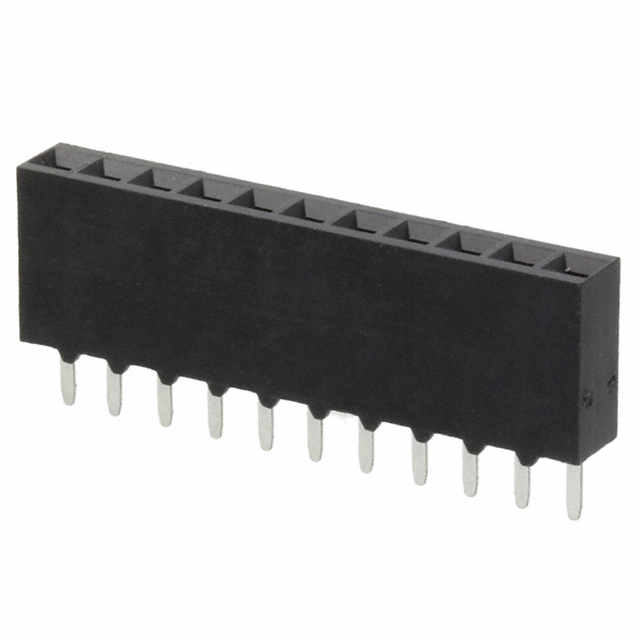

5-534237-9
Or copy the link below:
- Mfr.Part #
- 5-534237-9
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 11POS 0.1 GOLD PCB
- Stock
- 30,447
- In Stock ：
- 30,447
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Receptacles, Female Sockets
- Connector Type :
- Receptacle
- UL Flammability Code :
- 94V-0
- Contact Shape :
- Square
- Contact Finish Thickness - Post :
- 150.0μin 3.81μm
- Pbfree Code :
- yes
- Contact Material :
- Phosphor Bronze
- Contact Type :
- Female Socket
- Additional Feature :
- Stackable
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Positions :
- 11
- Fastening Type :
- Push-Pull
- Filter Feature :
- No
- Option :
- GENERAL PURPOSE
- DIN Conformance :
- No
- RoHS Status :
- RoHS Compliant
- Housing Material :
- Polyester
- Contact Finish - Post :
- Tin
- Insulation Height :
- 0.340 8.64mm
- Contact Length - Post :
- 0.115 2.92mm
- Terminal Pitch :
- 2.54mm
- Voltage - Rated :
- 750V
- Number of Positions Loaded :
- All
- IEC Conformance :
- No
- Factory Lead Time :
- 14 Weeks
- Published :
- 2013
- Mounting Type :
- Through Hole
- Pitch - Mating :
- 0.100 2.54mm
- Contact Finish - Mating :
- Gold
- Style :
- Board to Board or Cable
- Termination :
- Solder
- Series :
- AMPMODU Mod IV
- MIL Conformance :
- No
- Mixed Contacts :
- No
- Packaging :
- Tube
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Insulation Color :
- Black
- Operating Temperature :
- -65°C~125°C
- Current Rating :
- 2A
- Material Flammability Rating :
- UL94 V-0
- Number of Rows :
- 1
- Insulation Material :
- Polyester, Glass Filled
- Radiation Hardening :
- No
- Datasheets
- 5-534237-9
1 Rows Receptacle Solder Phosphor Bronze Through Hole Tube Gold Polyester, Glass Filled 11 Positions Female Socket
5-534237-9 Overview
The packaging contains Receptacle.There is a Through Hole mounting type for the device.This product is packaged in a case marked Tube.Product number AMPMODU Mod IV belongs to the AMPMODU Mod IV Series.Further, there are features such as STACKABLE, to name only a few.This device operates at a temperature of -65°C~125°C.
5-534237-9 Features
AMPMODU Mod IV series
5-534237-9 Applications
There are a lot of TE Connectivity AMP Connectors
5-534237-9 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
