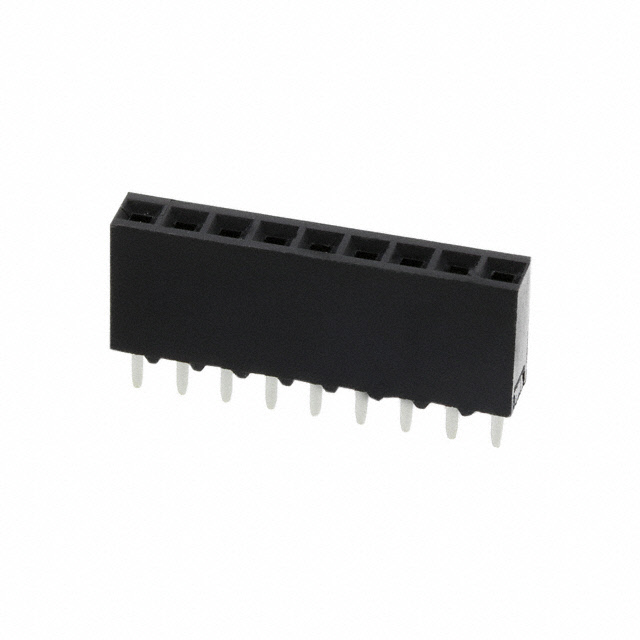

5-534237-7
Or copy the link below:
- Mfr.Part #
- 5-534237-7
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 9POS 0.1 GOLD PCB
- Stock
- 29,154
- In Stock ：
- 29,154
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Receptacles, Female Sockets
- Contact Finish Thickness - Post :
- 150.0μin 3.81μm
- Termination :
- Solder
- Factory Lead Time :
- 14 Weeks
- Current Rating (Amps) :
- 2A
- Contact Shape :
- Square
- Number of Positions :
- 9
- Contact Plating :
- Gold
- Number of Rows :
- 1
- Connector Type :
- Receptacle
- Material Flammability Rating :
- UL94 V-0
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Style :
- Board to Board or Cable
- Insulation Material :
- Polyester, Glass Filled
- Mount :
- Through Hole
- Series :
- AMPMODU Mod IV
- Number of Contacts :
- 9
- Contact Type :
- Female Socket
- Published :
- 2013
- Insulation Color :
- Black
- Contact Finish - Post :
- Tin
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Mounting Type :
- Through Hole
- Contact Material :
- Phosphor Bronze
- RoHS Status :
- RoHS Compliant
- Operating Temperature :
- -65°C~125°C
- Insulation Height :
- 0.340 8.64mm
- Contact Finish - Mating :
- Gold
- Pitch - Mating :
- 0.100 2.54mm
- Contact Length - Post :
- 0.115 2.92mm
- Packaging :
- Tube
- Pitch :
- 2.54mm
- Gender :
- FEMALE
- Number of Positions Loaded :
- All
- Fastening Type :
- Push-Pull
- Datasheets
- 5-534237-7
1 Rows Receptacle Solder Phosphor Bronze Through Hole Tube Gold Polyester, Glass Filled 9 Positions Female Socket
5-534237-7 Overview
A Receptacle packaging is included.It's mounted Through Hole.We use a Tube case to package the product.It's from the AMPMODU Mod IV Series.It's mounted by Through Hole.-65°C~125°C Operating Temperature is what the device runs at.
5-534237-7 Features
AMPMODU Mod IV series
5-534237-7 Applications
There are a lot of TE Connectivity AMP Connectors
5-534237-7 Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
