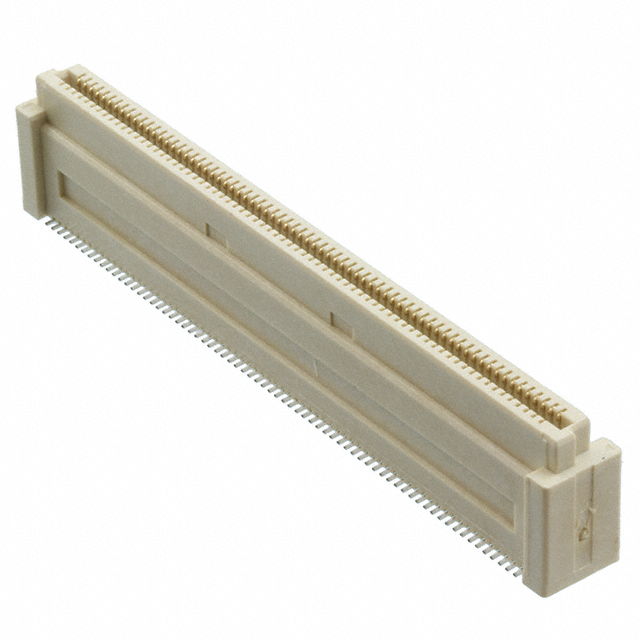

5-5179010-6

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Reliability :

COMMERCIAL

Factory Lead Time :

14 Weeks

Option :

GENERAL PURPOSE

Series :

Free Height (FH)

Total Number of Contacts :

140

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Row Spacing :

2.4 mm

DIN Conformance :

No

Operating Supply Voltage :

100V

Feature :

Board Guide

Durability :

100 Cycles

Mixed Contacts :

No

REACH SVHC :

No SVHC

Gender :

Receptacle

Dielectric Withstanding Voltage :

500VAC V

Contact Finish Thickness - Mating :

203.2 nm

Plating Thickness :

8μin

Insulation Material :

Thermoplastic

Mount :

Surface Mount

Number Of PCB Rows :

2

Contact Resistance :

30mOhm

Contact Finish :

Gold

Max Operating Temperature :

125°C

Filter Feature :

No

Contact Pattern :

RECTANGULAR

Housing Material :

Polymer

Height :

13.0048mm

Pbfree Code :

yes

Number of Rows :

2

Mounting Type :

Surface Mount

Height Above Board :

0.463 11.75mm

Insulation Resistance :

2MOhm

Insertion Force-Max :

.8896 N

Preloaded :

yes

Polarization Key :

POLARIZED HOUSING

Lifecycle Status :

ACTIVE (Last Updated: 1 week ago)

Stack Height (Mating) :

13mm

RoHS Status :

RoHS Compliant

Termination :

SMD/SMT, Solder

PCB Contact Pattern :

RECTANGULAR

MIL Conformance :

No

Contact Style :

BELLOWED TYPE

Number of Positions :

140

Current Rating :

500mA

Flammability Rating :

UL94 V-0

Voltage - Rated AC :

100V

Number of Conductors :

ONE

Min Operating Temperature :

-40°C

Contact Finish Thickness :

8.00μin 0.203μm

ELV :

Compliant

Connector Type :

Receptacle, Outer Shroud Contacts

Mating Alignment :

With

Orientation :

Vertical

Lead Pitch :

800μm

PCB Mount Retention :

Without

Depth :

6.4mm

Rated Current (Signal) :

0.5A

Voltage - Rated :

100V

Housing Color :

Natural

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Length :

61.8mm

Circuit Application :

Signal

Max Voltage Rating (AC) :

100V

Sealable :

No

Withdrawl Force-Min :

.0973 N

IEC Conformance :

No

Pitch :

0.031 0.80mm

Stack Height :

15mm

Contact Current Rating :

500mA

Reference Standard :

UL

Lead Free :

Lead Free

Packaging :

Tube

Published :

2006
