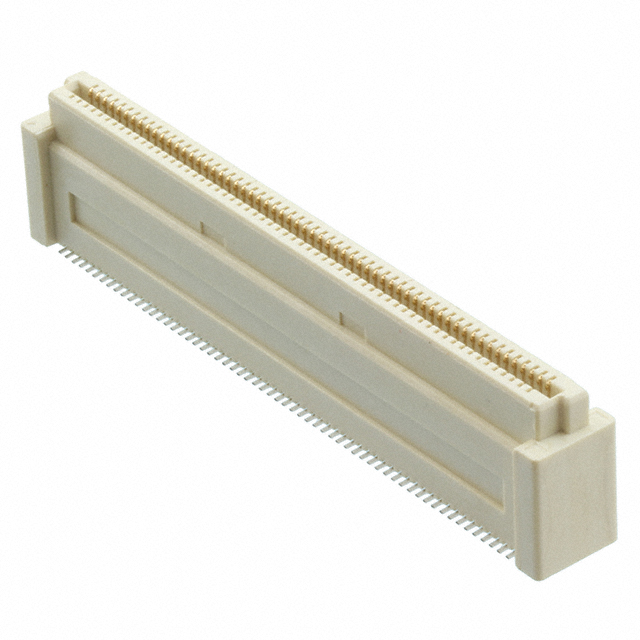

5-5179010-5

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

PCB Mount Retention :

Without

JESD-609 Code :

e3

Voltage - Rated AC :

100V

Rated Current (Signal) :

0.5A

REACH SVHC :

Unknown

Height Above Board :

0.463 11.75mm

Insulation Resistance :

2MOhm

Stack Height :

15mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Pitch :

0.031 0.80mm

Orientation :

Vertical

Stack Height (Mating) :

13mm

Termination :

SMD/SMT, Solder

Filter Feature :

No

Flammability Rating :

UL94 V-0

Depth :

6.8mm

Contact Finish Thickness :

8.00μin 0.203μm

Number of Rows :

2

Sealable :

No

Operating Supply Voltage :

100V

Mixed Contacts :

No

Current Rating :

500mA

Connector Type :

Receptacle, Outer Shroud Contacts

Min Operating Temperature :

-40°C

Contact Style :

BELLOWED TYPE

RoHS Status :

RoHS Compliant

Withdrawl Force-Min :

.0973 N

Mounting Type :

Surface Mount

Mating Alignment :

With

MIL Conformance :

No

Contact Finish Thickness - Mating :

200 nm

Factory Lead Time :

9 Weeks

PCB Contact Pattern :

RECTANGULAR

Max Voltage Rating (AC) :

100V

Contact Current Rating :

500mA

Preloaded :

yes

Published :

2006

Max Operating Temperature :

125°C

Length :

53.8mm

IEC Conformance :

No

Number Of PCB Rows :

2

Pbfree Code :

yes

Voltage - Rated :

100V

Reliability :

COMMERCIAL

Housing Color :

Natural

Contact Pattern :

RECTANGULAR

Housing Material :

Polymer

Contact Resistance :

30mOhm

Plating Thickness :

8μin

Reference Standard :

UL

Circuit Application :

Signal

Series :

Free Height (FH)

Contact Finish :

Gold

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Number of Conductors :

ONE

Lead Pitch :

800μm

Gender :

Receptacle

Height :

13.0048mm

Mount :

Surface Mount

Number of Positions :

120

Durability :

100 Cycles

Dielectric Withstanding Voltage :

500VAC V

Insertion Force-Max :

.8896 N

Packaging :

Tube

Feature :

Board Guide

Total Number of Contacts :

120

Insulation Material :

Thermoplastic

DIN Conformance :

No

Polarization Key :

POLARIZED HOUSING

Option :

GENERAL PURPOSE

Row Spacing :

2.4 mm
