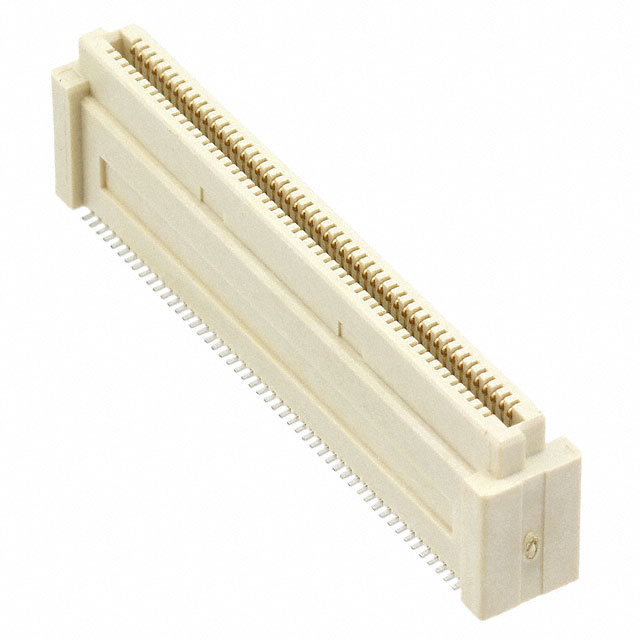

5-5179010-4

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Factory Lead Time :

9 Weeks

Plating Thickness :

8μin

Feature :

Board Guide

Pitch :

0.031 0.80mm

Circuit Application :

Signal

Contact Resistance :

30mOhm

Preloaded :

yes

Mount :

Surface Mount

Mounting Type :

Surface Mount

Housing Material :

Polymer

Housing Color :

Natural

UL Flammability Code :

94V-0

Contact Finish :

Gold

Lead Pitch :

800μm

Reliability :

COMMERCIAL

Connector Type :

Receptacle, Outer Shroud Contacts

Min Operating Temperature :

-40°C

Height :

13.0048mm

Max Operating Temperature :

125°C

Number Of PCB Rows :

2

Filter Feature :

No

Contact Finish Thickness :

8.00μin 0.203μm

Sealable :

No

Contact Current Rating :

500mA

Total Number of Contacts :

100

Operating Supply Voltage :

100V

PCB Contact Pattern :

RECTANGULAR

Lead Free :

Lead Free

Voltage - Rated AC :

100V

Termination :

SMD/SMT, Solder

Mating Alignment :

With

JESD-609 Code :

e3

DIN Conformance :

No

Rated Current (Signal) :

0.5A

Reference Standard :

UL

IEC Conformance :

No

Published :

2006

Flammability Rating :

UL94 V-0

Contact Finish Thickness - Mating :

200 nm

Depth :

6.8mm

Insulation Resistance :

2MOhm

Row Spacing :

2.4 mm

Withdrawl Force-Min :

.0973 N

Contact Style :

BELLOWED TYPE

Length :

45.8mm

ELV :

Compliant

Contact Pattern :

RECTANGULAR

Current Rating :

500mA

RoHS Status :

RoHS Compliant

Mixed Contacts :

No

Number of Rows :

2

Max Voltage Rating (AC) :

100V

Dielectric Withstanding Voltage :

500VAC V

Orientation :

Vertical

Insulation Material :

Thermoplastic

Number of Positions :

100

Gender :

Receptacle

PCB Mount Retention :

Without

Series :

Free Height (FH)

Voltage - Rated :

100V

Insertion Force-Max :

.8896 N

Polarization Key :

POLARIZED HOUSING

Number of Conductors :

ONE

Option :

GENERAL PURPOSE

Height Above Board :

0.463 11.75mm

Packaging :

Tube

MIL Conformance :

No

Stack Height (Mating) :

13mm

REACH SVHC :

No SVHC

Stack Height :

15mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Lifecycle Status :

ACTIVE (Last Updated: 1 day ago)
