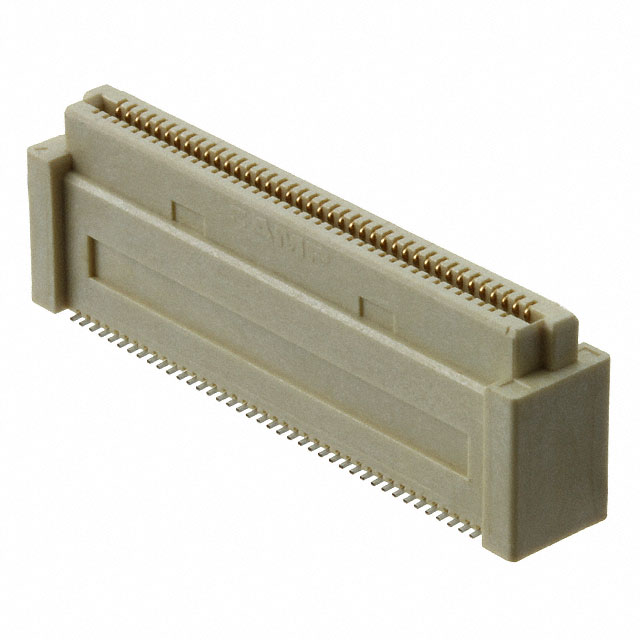

5-5179010-3

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

RoHS Status :

RoHS Compliant

DIN Conformance :

No

Termination :

SMD/SMT, Solder

PCB Mount Retention :

Without

HTS Code :

8536.69.40.40

Operating Supply Voltage :

100V

Mixed Contacts :

No

ECCN Code :

EAR99

Factory Lead Time :

9 Weeks

Height :

13.0048mm

Insertion Force-Max :

.8896 N

Sealable :

No

Polarization Key :

POLARIZED HOUSING

Number Of PCB Rows :

2

Stack Height :

15mm

Lifecycle Status :

ACTIVE (Last Updated: 5 months ago)

Reliability :

COMMERCIAL

Feature :

Board Guide

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Circuit Application :

Signal

Withdrawl Force-Min :

.0973 N

Height Above Board :

0.463 11.75mm

Number of Conductors :

ONE

Series :

Free Height (FH)

IEC Conformance :

No

PCB Contact Pattern :

RECTANGULAR

Contact Style :

BELLOWED TYPE

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Rows :

2

Mounting Type :

Surface Mount

Pitch :

0.031 0.80mm

Contact Finish Thickness - Mating :

200 nm

Housing Material :

Polymer

Lead Pitch :

800μm

Total Number of Contacts :

80

Durability :

100 Cycles

Max Voltage Rating (AC) :

100V

Packaging :

Tube

Reference Standard :

UL

Contact Finish Thickness :

8.00μin 0.203μm

Pbfree Code :

yes

Contact Resistance :

30mOhm

Orientation :

Vertical

Insulation Resistance :

2MOhm

Mating Alignment :

With

Plating Thickness :

8μin

Voltage - Rated :

100V

Row Spacing :

2.4 mm

Published :

2006

Connector Type :

Receptacle, Outer Shroud Contacts

Filter Feature :

No

Max Operating Temperature :

125°C

Voltage - Rated AC :

100V

MIL Conformance :

No

Current Rating :

500mA

Contact Current Rating :

500mA

Contact Pattern :

RECTANGULAR

Flammability Rating :

UL94 V-0

Dielectric Withstanding Voltage :

500VAC V

Stack Height (Mating) :

13mm

ELV :

Compliant

Depth :

6.8mm

Number of Positions :

80

Housing Color :

Natural

REACH SVHC :

No SVHC

Length :

37.8mm

Mount :

Surface Mount

Preloaded :

yes

JESD-609 Code :

e3

Min Operating Temperature :

-40°C

Option :

GENERAL PURPOSE

Rated Current (Signal) :

0.5A

Insulation Material :

Thermoplastic

Gender :

Receptacle

Contact Finish :

Gold
