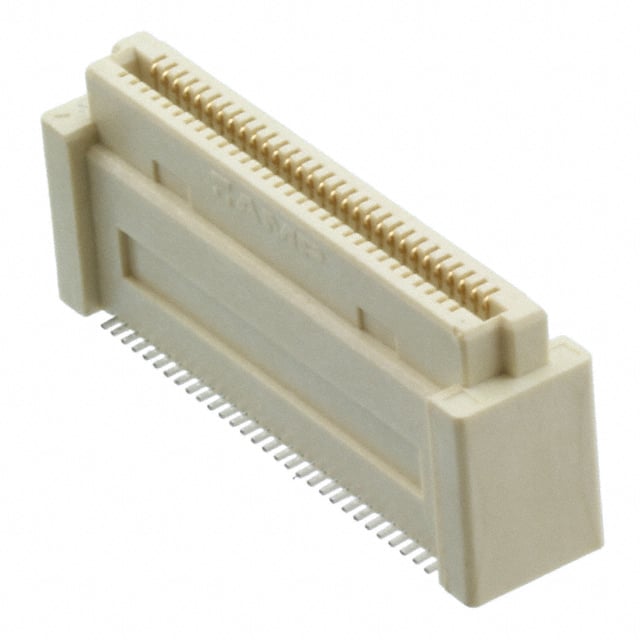

5-5179010-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Mixed Contacts :

No

Min Operating Temperature :

-40°C

Height Above Board :

0.463 11.75mm

Flammability Rating :

UL94 V-0

Published :

2006

Durability :

100 Cycles

Lead Pitch :

800μm

Contact Style :

BELLOWED TYPE

ECCN Code :

EAR99

Housing Color :

Natural

Depth :

6.8mm

Orientation :

Vertical

Factory Lead Time :

14 Weeks

Pitch :

0.031 0.80mm

Voltage - Rated :

100V

Current Rating :

500mA

Series :

Free Height (FH)

Height :

13.0048mm

Mating Alignment :

With

Mounting Type :

Surface Mount

Option :

GENERAL PURPOSE

Operating Supply Voltage :

100V

Length :

29.8mm

MIL Conformance :

No

Sealable :

No

Number of Positions :

60

Termination :

SMD/SMT

Contact Finish Thickness :

8.00μin 0.203μm

Housing Material :

Polymer

Mount :

Surface Mount

Packaging :

Tube

HTS Code :

8536.69.40.40

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Insertion Force-Max :

.8896 N

Max Operating Temperature :

125°C

JESD-609 Code :

e3

Number Of PCB Rows :

2

Preloaded :

yes

Circuit Application :

Signal

Lifecycle Status :

ACTIVE (Last Updated: 5 months ago)

Insulation Material :

Thermoplastic

Row Spacing :

2.4 mm

Stack Height (Mating) :

13mm

Polarization Key :

POLARIZED HOUSING

Gender :

Receptacle

Number of Rows :

2

Voltage - Rated AC :

100V

Withdrawl Force-Min :

.0973 N

Feature :

Board Guide

Filter Feature :

No

DIN Conformance :

No

Contact Finish :

Gold

IEC Conformance :

No

Total Number of Contacts :

60

Rated Current (Signal) :

0.5A

Stack Height :

15mm

Plating Thickness :

8μin

Reference Standard :

UL

Contact Current Rating :

500mA

Contact Resistance :

30mOhm

Max Voltage Rating (AC) :

100V

Connector Type :

Receptacle, Outer Shroud Contacts

Pbfree Code :

yes

Dielectric Withstanding Voltage :

500VAC V

Contact Finish Thickness - Mating :

200 nm

RoHS Status :

RoHS Compliant

PCB Mount Retention :

Without

REACH SVHC :

No SVHC

Insulation Resistance :

2MOhm

PCB Contact Pattern :

RECTANGULAR

Number of Conductors :

ONE

Contact Pattern :

RECTANGULAR

Reliability :

COMMERCIAL
