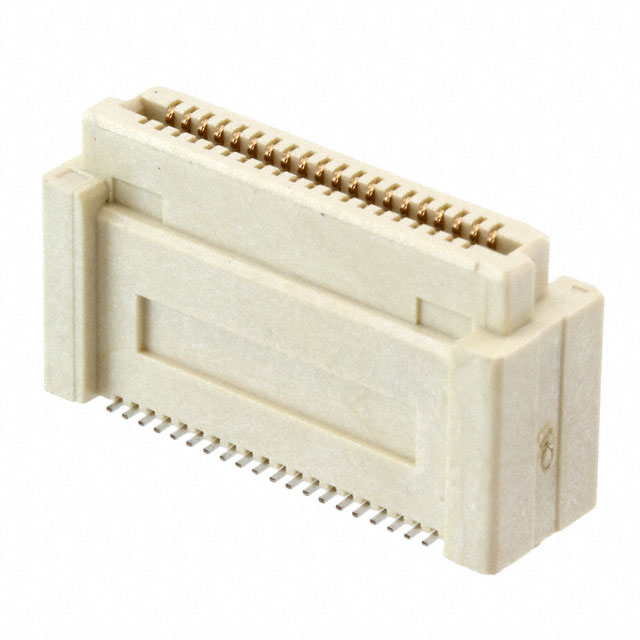

5-5179010-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Number of Rows :

2

Mount :

Surface Mount

Contact Current Rating :

500mA

Dielectric Withstanding Voltage :

500VAC V

Insulation Material :

Thermoplastic

Flammability Rating :

UL94 V-0

Height Above Board :

0.463 11.75mm

Durability :

100 Cycles

Number Of PCB Rows :

2

Pbfree Code :

yes

Packaging :

Tube

Lifecycle Status :

ACTIVE (Last Updated: 4 days ago)

Housing Color :

Natural

Max Voltage Rating (AC) :

100V

Height :

13.0048mm

Polarization Key :

POLARIZED HOUSING

Contact Finish Thickness - Mating :

200 nm

Stack Height (Mating) :

13mm

Number of Positions :

40

PCB Contact Pattern :

RECTANGULAR

Termination :

SMD/SMT, Solder

Plating Thickness :

8μin

Reliability :

COMMERCIAL

Feature :

Board Guide

Max Operating Temperature :

125°C

ECCN Code :

EAR99

Contact Style :

BELLOWED TYPE

REACH SVHC :

No SVHC

Circuit Application :

Signal

Mixed Contacts :

No

Contact Resistance :

30mOhm

Published :

2006

PCB Mount Retention :

Without

IEC Conformance :

No

Reference Standard :

UL

Voltage - Rated AC :

100V

Stack Height :

15mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Current Rating :

500mA

Contact Finish Thickness :

8.00μin 0.203μm

Depth :

6.8mm

MIL Conformance :

No

Contact Finish :

Gold

Series :

Free Height (FH)

Sealable :

No

Preloaded :

yes

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Operating Supply Voltage :

100V

Filter Feature :

No

Min Operating Temperature :

-40°C

Pitch :

0.031 0.80mm

Contact Pattern :

RECTANGULAR

Lead Pitch :

800μm

Option :

GENERAL PURPOSE

Gender :

Receptacle

RoHS Status :

RoHS Compliant

Length :

21.8mm

Additional Feature :

ROHS AND ELV COMPLIANT

Orientation :

Vertical

Voltage - Rated :

100V

Insertion Force-Max :

.8896 N

Mating Alignment :

With

Factory Lead Time :

9 Weeks

DIN Conformance :

No

Row Spacing :

2.4 mm

Withdrawl Force-Min :

.0973 N

Total Number of Contacts :

40

Number of Conductors :

ONE

Rated Current (Signal) :

0.5A

Insulation Resistance :

2MOhm

Connector Type :

Receptacle, Outer Shroud Contacts

Housing Material :

Polymer

Mounting Type :

Surface Mount
