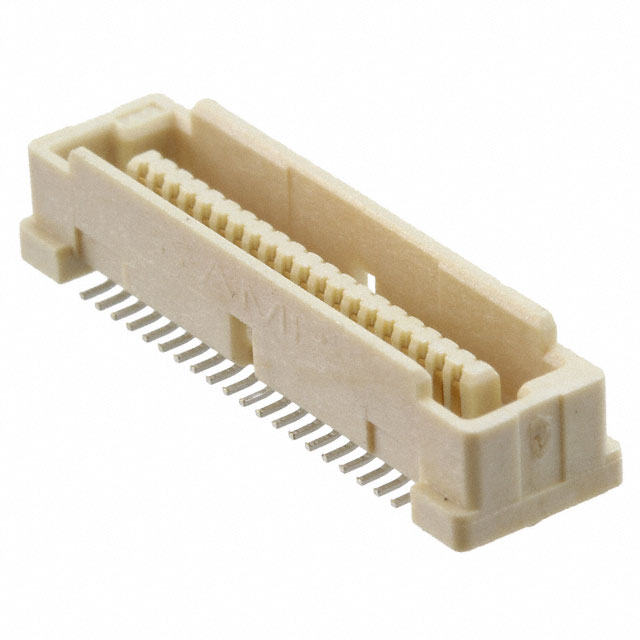

5-5177986-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

IEC Conformance :

No

Length :

21.8mm

Flammability Rating :

UL94 V-0

Max Operating Temperature :

125°C

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Lead Free :

Lead Free

Number Of PCB Rows :

2

Operating Supply Voltage :

100V

Reference Standard :

UL

Contact Current Rating :

500mA

Pitch :

0.031 0.80mm

ELV :

Compliant

Housing Material :

Polymer

Rated Current (Signal) :

0.5A

Contact Finish Thickness - Mating :

760 nm

Polarization Key :

ENDS

Mating Alignment :

With

Housing Color :

Natural

Depth :

6mm

RoHS Status :

RoHS Compliant

Published :

2006

Plating Thickness :

30μin

Pbfree Code :

yes

Preloaded :

yes

Contact Finish Thickness :

30.0μin 0.76μm

Contact Pattern :

RECTANGULAR

Contact Gender :

Male

Min Operating Temperature :

-40°C

Mount :

Surface Mount

Number of Positions :

40

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Factory Lead Time :

9 Weeks

Feature :

Board Guide

Contact Style :

Compression

PCB Contact Pattern :

RECTANGULAR

Height :

5mm

DIN Conformance :

No

Mixed Contacts :

No

Mounting Type :

Surface Mount

Contact Finish :

Gold

Height Above Board :

0.191 4.85mm

Packaging :

Tape and Reel (TR)

Durability :

100 Cycles

Contact Material :

Brass

Circuit Application :

Signal

Max Voltage Rating (AC) :

100V

Stack Height (Mating) :

5mm 9mm 13mm 17mm

PCB Mount Retention :

Without

Filter Feature :

No

Total Number of Contacts :

40

Connector Type :

Plug, Center Strip Contacts

Orientation :

Vertical

Stack Height :

8.9916mm

Insertion Force-Max :

.8896 N

Contact Resistance :

30mOhm

Insulation Resistance :

2MOhm

Dielectric Withstanding Voltage :

500VAC V

Number of Rows :

2

Option :

GENERAL PURPOSE

MIL Conformance :

No

Reliability :

COMMERCIAL

Series :

Free Height (FH)

Number of Conductors :

ONE

Termination :

SMD/SMT

Row Spacing :

2.4 mm

Sealable :

No

Mating Information :

MULTIPLE MATING PARTS AVAILABLE
