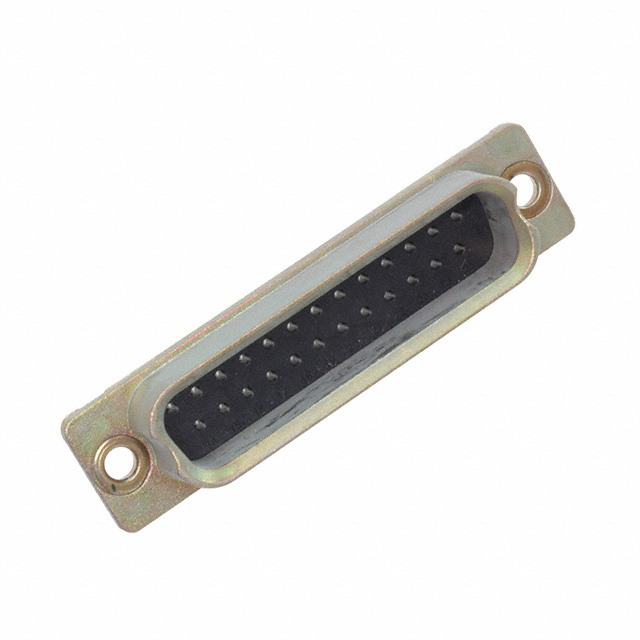

5-445007-1

Manufacturer :

TE Connectivity Aerospace Defense and Marine

Product Category :

D-Sub, D-Shaped Connector Housings

Current Rating :

7.5A

Preloaded :

yes

Contact Style :

Crimp

Sealable :

No

Factory Lead Time :

13 Weeks

Mount :

Free Hanging, Panel

Number of Rows :

2

Number of Positions :

25

Shell Material, Finish :

Aluminum Alloy (Front) / Steel (Rear), Yellow Chromate Plated Zinc

Total Number of Contacts :

25

Dielectric Material :

Polyester

Wire Gauge (Min) :

8 AWG

Shell Material :

Steel

Orientation :

Straight

HTS Code :

8536.69.40.30

Hole Diameter :

3.048 mm

Pbfree Code :

yes

Packaging :

Bulk

Length :

53.31mm

DIN Conformance :

No

IEC Conformance :

No

Empty Shell :

yes

Published :

2008

Filter Feature :

No

Max Operating Temperature :

125°C

Shell Finish Thickness :

200μin 5.08μm

Min Operating Temperature :

-55°C

ELV :

Compliant

Depth :

17.7mm

Body Breadth :

0.494 inch

RoHS Status :

RoHS Compliant

Option :

GENERAL PURPOSE

Shell Size, Connector Layout :

3 DB B

Connector Style :

D-Sub

Color :

Blue

Flange Feature :

Housing/Shell (Unthreaded)

Connector Type :

Plug for Male Contacts

Reliability :

COMMERCIAL

MIL Conformance :

No

Wire Gauge (Max) :

18 AWG

Plating :

Chromate, Zinc

Note :

Contacts Not Included

Max Voltage Rating (AC) :

600V

Mounting Type :

Free Hanging (In-Line)

Series :

AMPLIMITE 109

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Contact Type :

Signal

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

ECCN Code :

EAR99

Contact Design :

PREASSEM CONN

Mixed Contacts :

No

Gender :

Male
