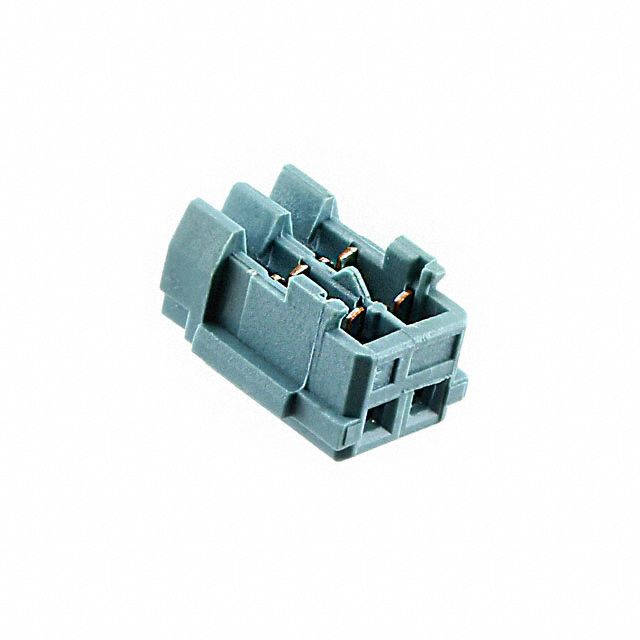

5-353293-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Free Hanging, Panel Mount

Flammability Rating :

UL94 V-0

Wire Gauge (Max) :

28 AWG

Series :

Mini CT

RoHS Status :

RoHS Compliant

Length :

4.5mm

Wire Gauge (Min) :

26 AWG

Max Operating Temperature :

105°C

Housing Material :

Nylon

Wire Type :

Discrete

Max Voltage Rating (AC) :

50V

Current Rating :

2A

IEC Conformance :

No

Contact Finish :

Tin

Mount :

Free Hanging

UL Flammability Code :

94V-0

Color :

Blue

ELV :

Compliant

Published :

2004

Contact Resistance :

20mOhm

Feature :

Closed End

Min Operating Temperature :

-30°C

ECCN Code :

EAR99

Mounting Type :

Free Hanging (In-Line)

Cable Termination :

IDC

Number of Positions :

2

Mixed Contacts :

No

Mating Retention :

With

Durability :

30 Cycles

Polarization Key :

POLARIZED HOUSING

Factory Lead Time :

25 Weeks

Reference Standard :

UL

Depth :

6mm

Contact Material :

Bronze

Pitch :

0.059 1.50mm

HTS Code :

8536.69.40.40

DIN Conformance :

No

Lead Free :

Not Applicable

MIL Conformance :

No

Pbfree Code :

yes

Number of Rows :

1

Connector Type :

Receptacle

Filter Feature :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Reliability :

COMMERCIAL

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Dielectric Withstanding Voltage :

500VAC V

Total Number of Contacts :

2

Sealable :

No

Orientation :

Straight

Option :

GENERAL PURPOSE

Wire Gauge :

26-28 AWG

Packaging :

Bulk

Rated Current (Signal) :

2A

Contact Type :

Female Socket

Contact Design :

PREASSEM CONN
