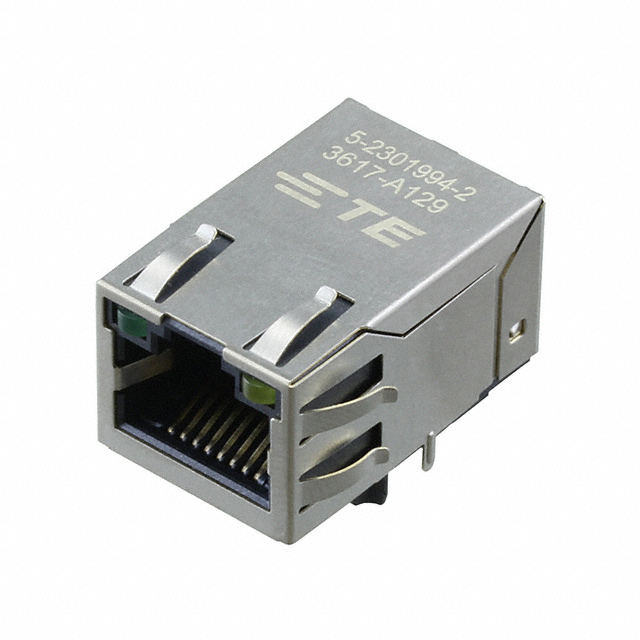

5-2301994-2
Or copy the link below:
- Mfr.Part #
- 5-2301994-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN JACK 1PORT 100 BASE-T PCB
- Stock
- 685
- In Stock ：
- 685
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Modular Connector Jacks With Magnetics
- Factory Lead Time :
- 17 Weeks
- PCB Mounting Orientation :
- RIGHT ANGLE
- Number of Ports :
- 1
- Element Configuration :
- Single
- Operating Temperature :
- -40°C~85°C
- Packaging :
- Tray
- Termination :
- Solder
- LED Color :
- Green - Yellow
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Insulation Material :
- LIQUID CRYSTAL POLYMER
- ECCN Code :
- EAR99
- Data Rate :
- 100 Mbps
- Orientation :
- 90° Angle (Right)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Height Above Board :
- 0.544 13.82mm
- Color :
- Black
- Contact Finish :
- Gold
- Housing Material :
- Liquid Crystal Polymer (LCP)
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Keyed :
- No
- Shield Material :
- Brass
- Tab Direction :
- UP
- Flammability Rating :
- UL94 V-0
- Published :
- 2017
- RoHS Status :
- RoHS Compliant
- Feature :
- Board Lock
- Connector Type :
- RJ45
- Height :
- 13.83mm
- Contact Material :
- COPPER ALLOY
- Number of Cores per Jack :
- 4
- Contact Plating :
- Tin
- Shielding :
- Shielded, EMI Finger
- Contact Finish Thickness - Mating :
- 760 nm
- Applications :
- 10/100 Base-T, AutoMDIX
- Mounting Type :
- Through Hole
- Number of Positions Loaded :
- 8
- Datasheets
- 5-2301994-2
