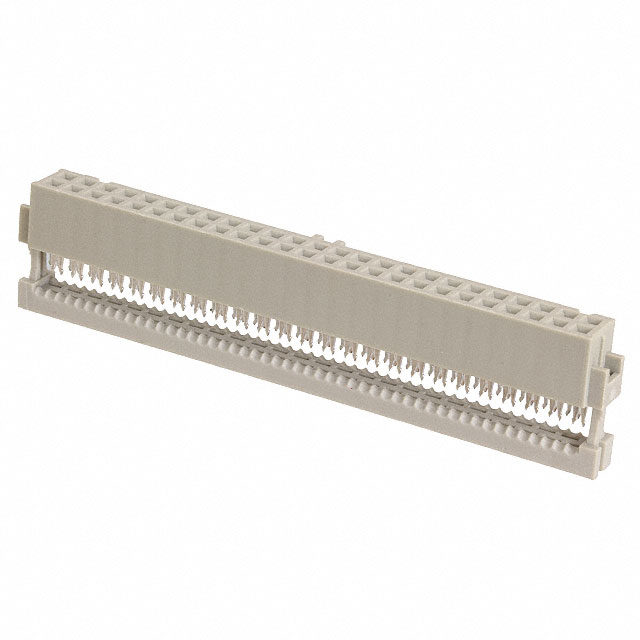

5-215915-0

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Free Hanging, Panel Mount

MIL Conformance :

No

Lifecycle Status :

ACTIVE (Last Updated: 5 months ago)

Pbfree Code :

yes

Filter Feature :

No

Connector Type :

Receptacle

UL Flammability Code :

94V-0

Radiation Hardening :

No

Mounting Type :

Free Hanging (In-Line), Right Angle

Packaging :

Cut Tape (CT)

Contact Material :

Bronze

Mixed Contacts :

No

RoHS Status :

RoHS Compliant

Length :

68.1mm

HTS Code :

8536.69.40.40

DIN Conformance :

No

Orientation :

RIGHT ANGLE

Polarization Key :

POLARIZED HOUSING

Wire/Cable Type :

Ribbon

Row Spacing :

0.100 (2.54mm)

Number of Rows :

2

ELV :

Compliant

Series :

AMP-Latch

Operating Temperature (Min) :

-65°C

Termination :

IDT

Mating Connector Lock :

With

Depth :

7.3mm

Contact Type :

Female Socket

Current Rating :

1A

JESD-609 Code :

e3

Option :

GENERAL PURPOSE

Color :

Gray

Total Number of Contacts :

50

Number of Positions :

50

Plating Thickness :

31μin

Cable Termination :

IDC

Feature :

Feed Through, Polarizing Key

Housing Color :

Grey

Contact Finish Thickness :

31.5μin 0.80μm

Housing Material :

Polyester

ECCN Code :

EAR99

Factory Lead Time :

12 Weeks

Additional Feature :

LATCHED

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mount :

Free Hanging

Pitch :

0.100 2.54mm

Reference Standard :

UL

Contact Design :

PREASSEM CONN

Rated Current (Signal) :

1A

Contact Finish :

Gold

IEC Conformance :

No

Circuit Application :

Signal

Wire Type :

Ribbon Cable

Published :

2014

Operating Temperature (Max) :

105°C
