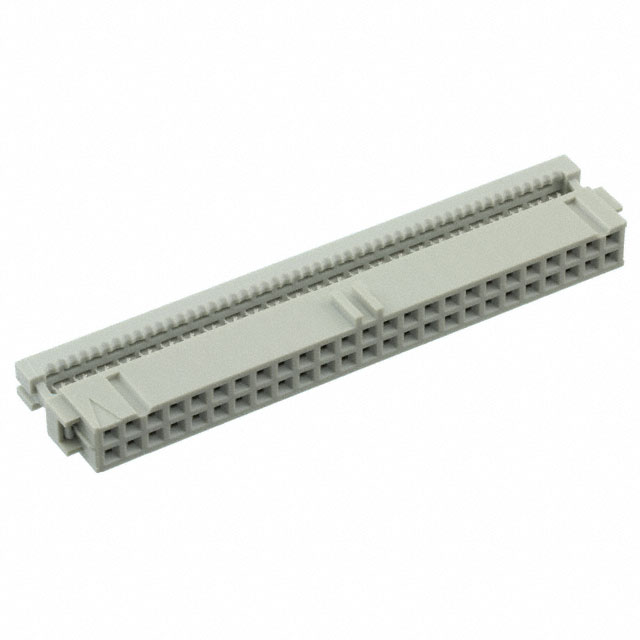

5-215882-0

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Free Hanging, Panel Mount

Depth :

14.2 mm

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Reference Standard :

UL

Mounting Type :

CABLE

Orientation :

RIGHT ANGLE

Option :

GENERAL PURPOSE

Product Type :

Headers and Wire Housings

Height :

14.2mm

Reach Compliance Code :

Compliant

Product Depth (mm) :

14.2(mm)

Termination Method :

IDT

Additional Feature :

LATCHED

Contact Pattern :

RECTANGULAR

Circuit Application :

Signal

Content :

1pc(s)

Body Depth :

0.559 inch

JESD-609 Code :

e3

Dim :

(L x W x H) 7.3 x 68.1 x 14.2 mm

Factory Lead Time :

14 Weeks

Body/Shell Style :

Receptacle

Mount :

CABLE

Total no. of pins :

50

ELV :

Compliant

Length :

7.3mm

Dielectric Withstanding Voltage :

500VAC V

Tradename :

AMP-Latch

Current Rating :

1 A

Product Category :

Headers and Wire Housings

Pitch (mm) :

2.54(mm)

ECCN Code :

EAR99

Number of Rows :

2

Brand :

TE Connectivity

Insulation Resistance :

1000000000 Ω

Body Orientation :

RIGHT ANGLE

Application :

Wire-to-Board

No. of rows :

2

Mounting Style :

CABLE

Rated Current (Signal) :

1 A

Manufacturer part # :

5-215882-0

Series :

AMP-Latch

IEC Conformance :

No

Termination Style :

IDC

Row Spacing :

2.54 mm

Maximum Operating Temperature :

+ 125 C

Case material :

PA

Mating Contact Pitch :

0.1 inch

Minimum Operating Temperature :

- 55 C

Width :

68.1mm

Housing Material :

Thermoplastic

Type :

215882-50

Mating Connector Lock :

With

Contact Material :

Phosphor Bronze

Product Height (mm) :

7.3(mm)

Polarization Key :

POLARIZED HOUSING

Pbfree Code :

yes

Packaging :

Bulk

Housing Gender :

Receptacle

HTS Code :

8536.69.40.40

Body Breadth :

0.287 inch

Termination :

IDT

Number of Pins :

50

Mixed Contacts :

No

UL Flammability Code :

94V-0

Connector Type :

BOARD CONNECTOR

Contact Style :

SQ PIN-SKT

Number of Contacts :

50(POS)

AWG :

30

Filter Feature :

No

RoHS :

Compliant

MIL Conformance :

No

Product :

Headers

Radiation Hardening :

No

Lifecycle Status :

Production (Last Updated: 2 days ago)

Plating Thickness :

31u inch

Contact Resistance :

15 mΩ

Pitch :

2.54 mm

Lead Pitch :

2.54 mm

Housing Color :

Gray

Termination Type :

IDC

Gender :

RCP

Number of Positions :

50

Brand Name :

AMP

Insulator Color :

Gray

Mounting Option 1 :

LOCKING

Contact Finish Termination :

Tin (Sn)

Connection :

-

Total Number of Contacts :

50

Contact Design :

PREASSEM CONN

DIN Conformance :

No

Wire/Cable Type :

Ribbon

Durability :

50 Cycles

Connector contact surface :

Gold plated

Mating Contact Row Spacing :

0.1 inch

Contact Plating :

Gold Over Nickel

Contact Gender :

FEMALE

Product Length (mm) :

68.1(mm)

Pins per row :

25

CS :

2.54mm

REACH SVHC :

No SVHC

Number of Contact Rows :

2

Connector System :

Wire-to-Board
