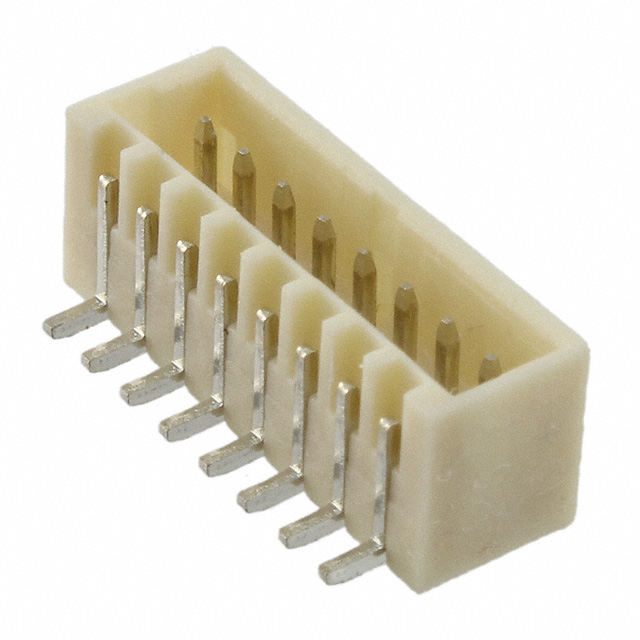

5-1775443-8
Or copy the link below:
- Mfr.Part #
- 5-1775443-8
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 8POS 1.5MM
- Stock
- 9,239
- In Stock ：
- 9,239
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Applications :
- Automotive, General Purpose, Industrial, Medical
- Mating Retention :
- Without
- Number of Contacts :
- 8
- Mating Post Length :
- 2.7mm
- Mount :
- Through Hole
- PCB Mount Alignment :
- Without
- PCB Mount Retention :
- Without
- Radiation Hardening :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Orientation :
- Vertical
- Voltage - Rated :
- 250VAC
- Insulation Color :
- Natural
- Contact Gender :
- Male
- Contact Finish - Post :
- Tin
- Insulation Height :
- 0.197 5.00mm
- Plating :
- Tin
- Pitch :
- 1.4986mm
- Published :
- 2009
- Operating Supply Voltage :
- 250V
- Pitch - Mating :
- 0.059 1.50mm
- Flammability Rating :
- UL94 V-0
- Width :
- 5.9944mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Packaging :
- Tape and Reel (TR)
- Insulation Material :
- Thermoplastic
- Housing Color :
- Natural
- Number of Positions Loaded :
- All
- Min Operating Temperature :
- -67°C
- Current Rating :
- 3A
- Wire/Cable Type :
- Discrete
- PCB Mounting Orientation :
- Vertical
- Number of Positions :
- 8
- Contact Finish Thickness - Mating :
- 100.0μin 2.54μm
- Mounting Type :
- Surface Mount
- Color :
- Natural
- Contact Current Rating :
- 3A
- Operating Temperature :
- -55°C~105°C
- Contact Finish - Mating :
- Tin
- Max Operating Temperature :
- 221°C
- Feature :
- Pick and Place
- Material Flammability Rating :
- UL94 V-0
- Series :
- High Performance Interconnect (HPI)
- Termination :
- Solder
- Plating Thickness :
- 2.54μm
- Lead Free :
- Lead Free
- Shrouding :
- Shrouded - 4 Wall
- Number of Rows :
- 1
- RoHS Status :
- RoHS Compliant
- Length :
- 13.4874mm
- Contact Type :
- Male Pin
- Sealable :
- No
- Connector Type :
- Header
- Housing Material :
- Thermoplastic
- ELV :
- Compliant
- Contact Shape :
- Square
- Lead Length :
- 1.55mm
- Height :
- 5mm
- Factory Lead Time :
- 14 Weeks
- Contact Length - Mating :
- 0.106 2.70mm
- Current Rating (Amps) :
- 3A
- Contact Material :
- Brass
- Style :
- Board to Cable/Wire
- Contact Plating :
- Nickel, Tin
- Datasheets
- 5-1775443-8
High Performance Interconnect (HPI) Series 1-Row Header Solder Brass Tape & Reel (TR) Surface Mount Tin Thermoplastic 8-Position Board to Cable/Wire 0.197 5.00mm Height
5-1775443-8 Overview
The packaging contains Header.There is a Surface Mount mounting type for the device.This product is packaged in a case marked Tape & Reel (TR).Product number High Performance Interconnect (HPI) belongs to the High Performance Interconnect (HPI) Series.Whenever the temperature is below 221°C, it's best.There is a minimum temperature requirement of [0°C] for this device.In addition to Automotive, General Purpose, Industrial, Medical, there are other possible applications for the device.In many ways, it is more powerful due to its Pick and Place feature.There is a Through Hole mount on the part.A 250V voltage is used to supply power to this memory.This device operates at a temperature of -55°C~105°C.
5-1775443-8 Features
High Performance Interconnect (HPI) series
5-1775443-8 Applications
There are a lot of TE Connectivity AMP Connectors
5-1775443-8 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
