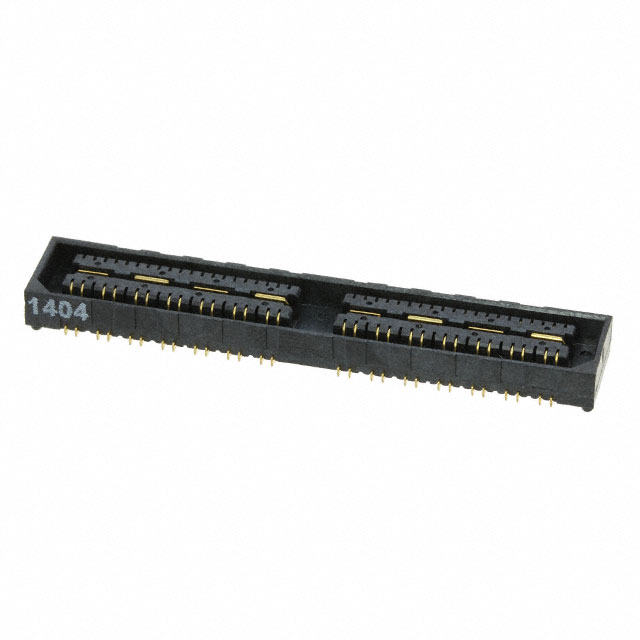

5-1658012-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Pitch :

0.031 0.80mm

Contact Finish Thickness - Mating :

250 nm

Row Spacing :

3.463823 mm

Total Number of Contacts :

56

Contact Pattern :

RECTANGULAR

Lifecycle Status :

ACTIVE (Last Updated: 5 days ago)

PCB Mount Alignment :

With

Housing Material :

Polymer

Termination :

SMD/SMT

Body Depth :

0.133 inch

Connector Type :

Differential Pair Array, Female

Number of Rows :

2

Factory Lead Time :

20 Weeks

Height Above Board :

0.128 3.25mm

Mounting Type :

Surface Mount

Stack Height :

25mm

Mating Alignment :

Without

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Height :

3.05mm

Gender :

FEMALE

RoHS Status :

RoHS Compliant

Orientation :

Vertical

ELV :

Compliant

Reliability :

COMMERCIAL

Housing Color :

Black

Body/Shell Style :

Receptacle

Dielectric Withstanding Voltage :

675VAC V

Contact Plating :

Gold, Nickel

Max Operating Temperature :

257°C

Sealable :

No

Plating Thickness :

250 nm

Number of Conductors :

ONE

Board Mounting Option :

PEG

Number Of PCB Rows :

2

Insulation Resistance :

5GOhm

Stack Height (Mating) :

5mm 8mm 11mm 14mm 16mm 19mm 22mm 25mm 30mm

PCB Contact Pattern :

RECTANGULAR

Contact Material :

Bronze

Mounting Option 1 :

LOCKING

Number of Positions :

56

Series :

MICTOR

Published :

2008

Contact Finish :

Gold

Impedance :

50Ohm

Packaging :

Cut Tape (CT)

PCB Thickness :

60μm

Contact Current Rating :

1.25A

Contact Finish Thickness :

10.0μin 0.25μm

Min Operating Temperature :

-85°C

Feature :

Board Guide, Ground Bus (Plane)

Durability :

100 Cycles

Operating Supply Voltage :

125V

Polarization Key :

POLARIZED HOUSING
