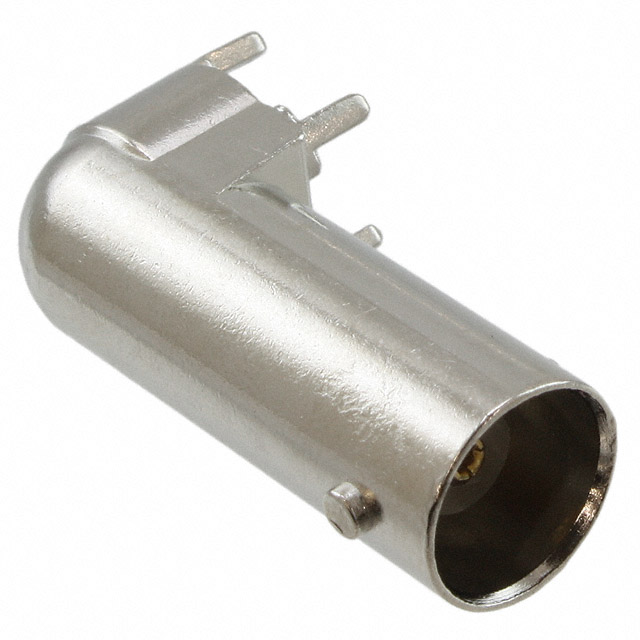

5-1634513-1
Or copy the link below:
- Mfr.Part #
- 5-1634513-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN BNC JACK R/A 50 OHM PCB
- Stock
- 9,378
- In Stock ：
- 9,378
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Coaxial Connector (RF) Assemblies
- IEC Conformance :
- No
- Body Finish :
- Nickel
- Frequency :
- 2GHz
- Mounting Type :
- Through Hole, Right Angle
- Contact Material :
- Brass
- Number of Ports :
- 1
- Fastening Type :
- Bayonet Lock
- Center Contact Plating :
- Gold
- Length - Tail :
- 3.5mm
- Connector Type :
- Jack, Female Socket
- Working Voltage :
- 500V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Resistance :
- 1.5mOhm
- Operating Temperature :
- -55°C~85°C
- ECCN Code :
- EAR99
- REACH SVHC :
- Unknown
- Orientation :
- RIGHT ANGLE
- Contact Termination :
- Solder
- Reliability :
- COMMERCIAL
- Center Contact Material :
- Phosphor Bronze
- Sealable :
- No
- Contact Style :
- COAX
- Housing Color :
- Silver
- DIN Conformance :
- No
- Number of Positions :
- 1
- Insulation Material :
- Polytetrafluoroethylene
- Insulation Resistance :
- 5GOhm
- Filter Feature :
- No
- MIL Conformance :
- No
- Option :
- GENERAL PURPOSE
- Gender :
- FEMALE
- Total Number of Contacts :
- 1
- Additional Feature :
- LOW PROFILE
- Packaging :
- Bulk
- Length :
- 28.1mm
- Dielectric Material :
- Polymethylpentene (PMP)
- PCB Mounting Orientation :
- RIGHT ANGLE
- Series :
- ZDC, Greenpar
- Published :
- 2006
- Connector Style :
- BNC
- Pbfree Code :
- yes
- Body Material :
- ZINC ALLOY
- PCB Thickness :
- 3.2004mm
- RoHS Status :
- RoHS Compliant
- Durability :
- 50 Cycles
- Factory Lead Time :
- 18 Weeks
- Polarity :
- Normal
- Mount :
- PCB, Through Hole
- Mating Cycles :
- 500
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Depth :
- 11mm
- Impedance :
- 50Ohm
- Datasheets
- 5-1634513-1
Jack, Female Socket Bayonet Lock 50Ohm Bulk BNC Solder 1 Port Polymethylpentene (PMP) -55°C~85°C
5-1634513-1 Overview
This product is packaged in a Jack, Female Socket carton.It's mounted Through Hole, Right Angle.We use a Bulk case to package the product.It's from the ZDC, Greenpar Series.There are also other features like LOW PROFILE, to name a few.You can manage a variety of tasks with its 1 ports.It's mounted by PCB, Through Hole.-55°C~85°C Operating Temperature is what the device runs at.When the frequency is set to 2GHz, it can perform efficiently.
5-1634513-1 Features
ZDC, Greenpar series
5-1634513-1 Applications
There are a lot of TE Connectivity AMP Connectors
5-1634513-1 Coaxial Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
